DESCRIPTION

Take your BBQ's and pool parties to the next level with left hinge Kegco's HK-38-SS Digital Outdoor Undercounter Kegerator (Cabinet Only), the outdoor beer dispenser your backyard or patio has been missing! Featuring a versatile design, a fully equipped draft dispense system, and a durable stainless steel exterior designed to withstand the elements, this kegerator is the ideal way to enjoy cold beer, coffee, kombucha, or wine while enjoying some beautiful weather. At 3200 therms, it boasts the most powerful compressor in its class, delivering unprecedented cooling for fast recovery and temperature pulldown.

• Undercounter Left Hinge Kegerator is cabinet only
• Can be built into cabinetry to provide a seamless look in your kitchen or home bar

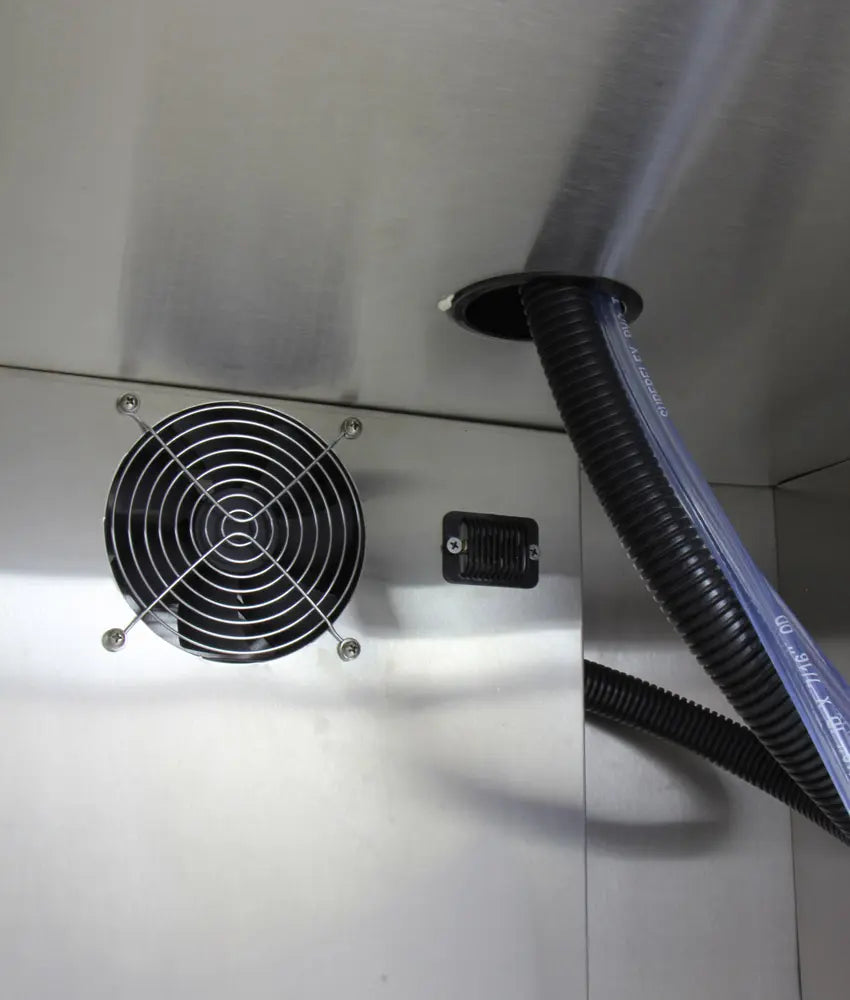

• Forced air refrigeration ensures even cooling throughout
• At 3200 therms, it has a commercial grade compressor that is the most powerful in its class, providing unprecedented cooling for fast recovery and temperature pulldown
• One of the widest temperature ranges available on the market allows this versatile cabinet only kegerator to serve ice cold beer or dispense wine at the proper temperature

FEATURES

• All dispensing accessories are UL recognized components

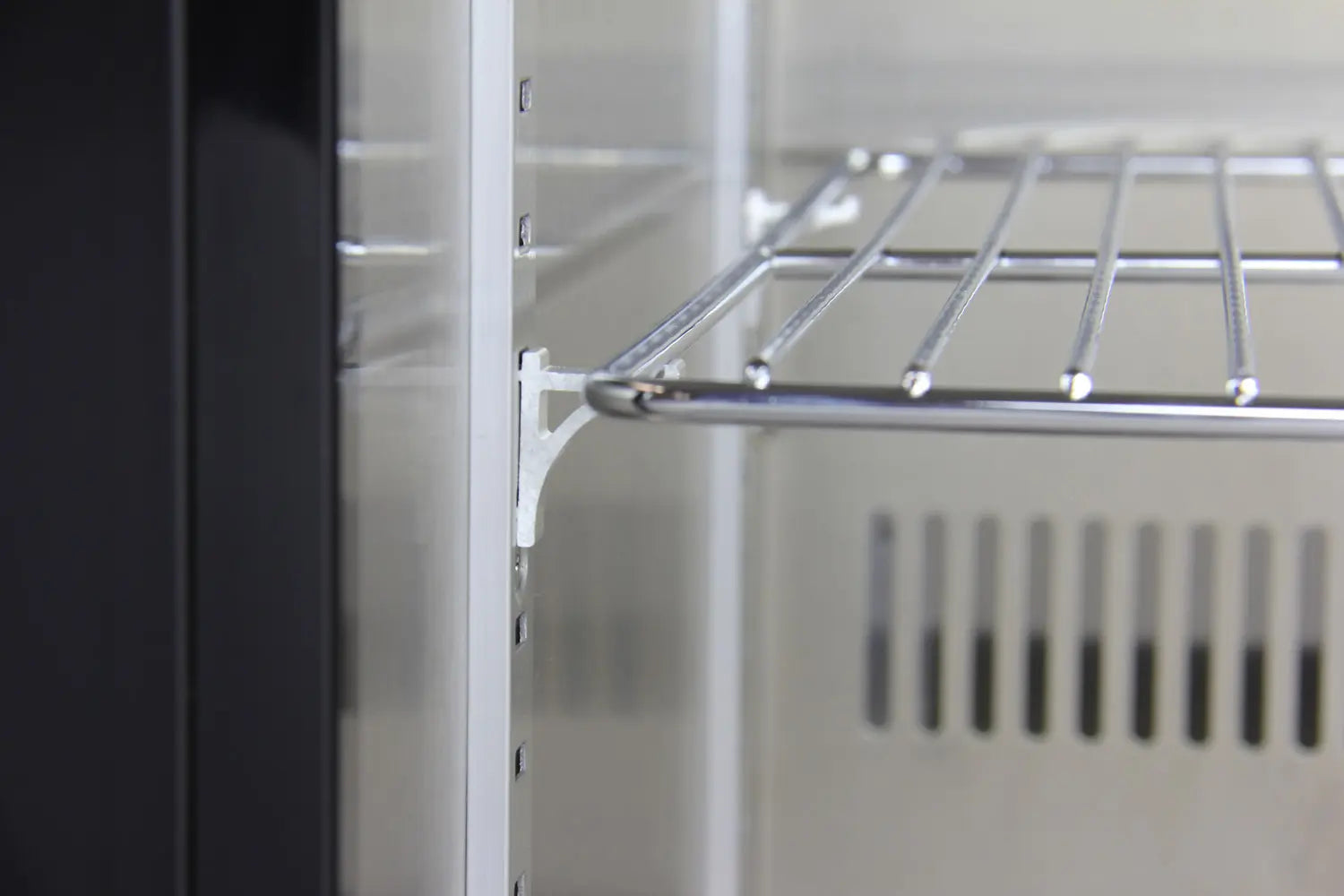

• Contain 2 full-width shelves that can be adjusted in 1/2" increments
• Large enough to hold most full size kegs, including Coors and Miller. Interior height is a limitation, so kegs that are taller than the standard half barrel (23.25" may not fit with the keg coupler installed. We have run into this issue with certain German kegs along with the M system coupler, but most major brands in D and S System kegs will not be an issue.
• Holds (1) full-size keg, (2) quarter slim kegs, (3) 5 gallon commercial kegs, or (3) 5 gallon home brew kegs
• Left hinge - Durable all stainless steel exterior makes it suitable for outdoor use

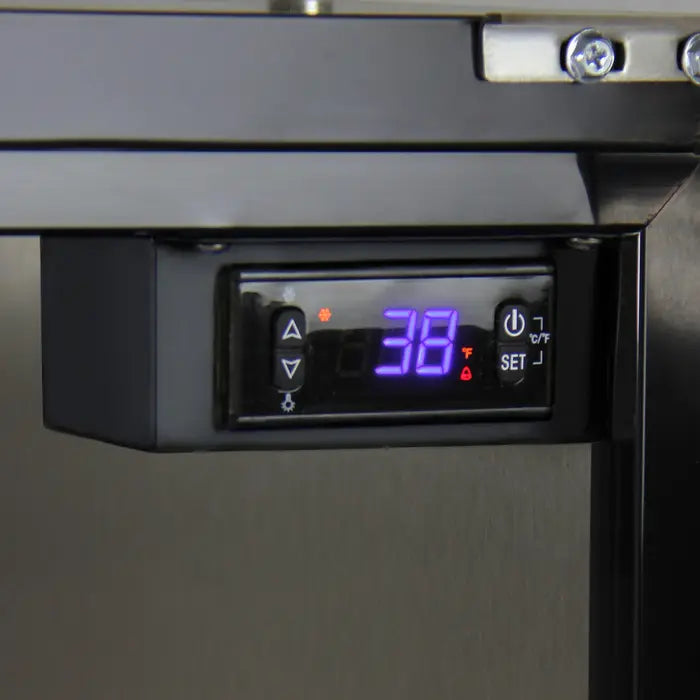

• Digital temperature control keeps temperature between 32-59 degrees Fahrenheit
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the ambient temperature.
• A perfect option for dispensing beer, soda, kombucha, wine or cold brew coffee
• Stainless steel guard rail helps prevent mugs and glasses from sliding off
• Stainless steel interior is more durable than the plastic liner found in most kegerators
• Plugs into standard home outlet
• PLEASE NOTE: Will not hold 50L European kegs.
• UL, NSF-7 & ETL Sanitation listed

SPECS

Dimensions
Height	34-1/8"
Width	24"
Depth	25" (without Handle)

Weight
Unit Weight	96.8 lbs.
Shipping Weight	150 lbs.

Warranty
Labor	1 Year
Parts	1 Year
Compressor (Parts Only)	5 Year

Exterior
Cabinet	Stainless Steel
Drip Tray	No
Guard Rail	Yes
Casters	Yes

Keg Storage Capacities
Full Size / 1/2-Barrel	Holds 1
Pony Size / 1/4-Barrel	Holds 1
1/4-Barrel Slim	Holds 2
1/6-Barrel	Holds 3
5 gal. Ball/Pin Lock Keg	Holds 3
5-Liter / Mini Keg	Holds 3

Key Features
Built-in Capable	Yes

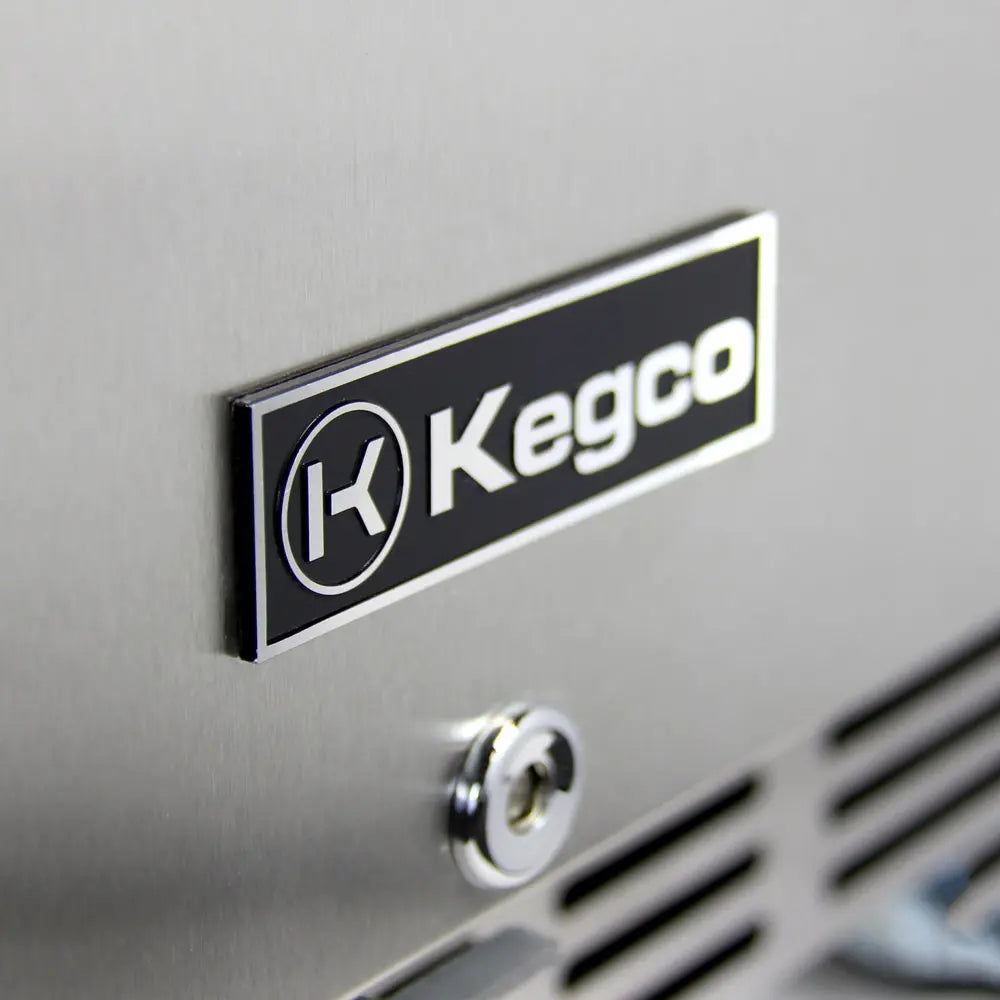

Security Lock	Yes
Outdoor Use	Yes
Commercial Use	Yes

Door
Color / Material	Stainless Steel
Number of Doors	1
Door Handle	Tower/Curved
Field Reversible	Yes
Accepts Custom Overlay Panel	No

Cooling System
Type	Compressor
Defrost System	Manual
Front Ventilation	No

Controls
Adjustable Thermostat	Yes
Digital	Yes

Electrical
Electrical Requirements	115v/60hz
Running Amps	1.7 A

WARRANTY



Labor - 12 Months

LIMITED ONE YEAR WARRANTY

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished.

Parts - 60 Months

LIMITED SECOND THROUGH FIFTH YEAR WARRANTY:

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges.

Additional Details

WHAT IS NOT COVERED:

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
