DESCRIPTION

• Ideal for use in both commercial and residential environments, this digital kegerator is CSA certified to conform to NSF/ANSI 7

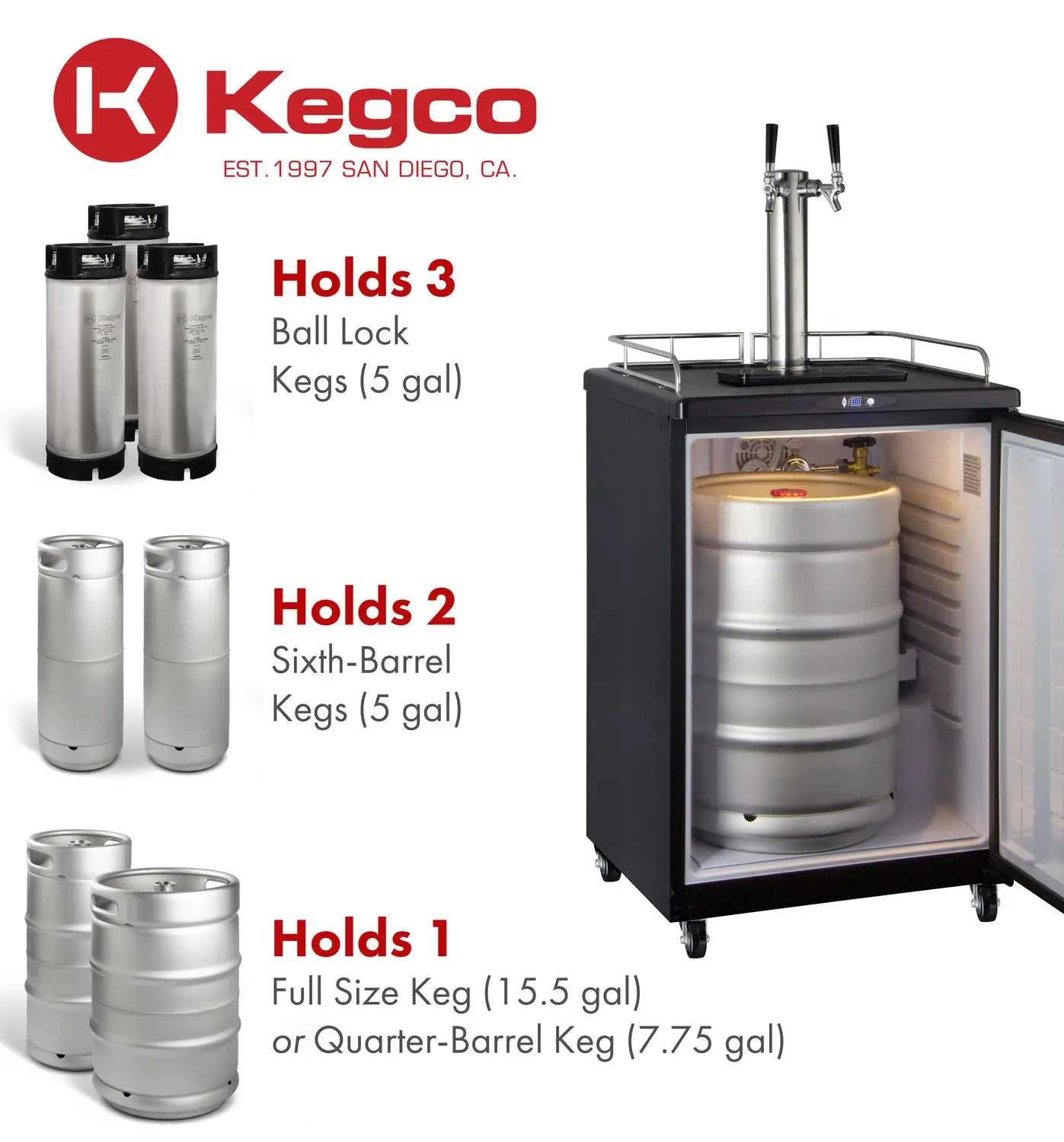

• The large 5.8 cu.ft. interior is spacious enough to hold one full size, pony, or quarter slim keg, two 5 gallon commercial kegs, three ball lock kegs, or two pin lock kegs

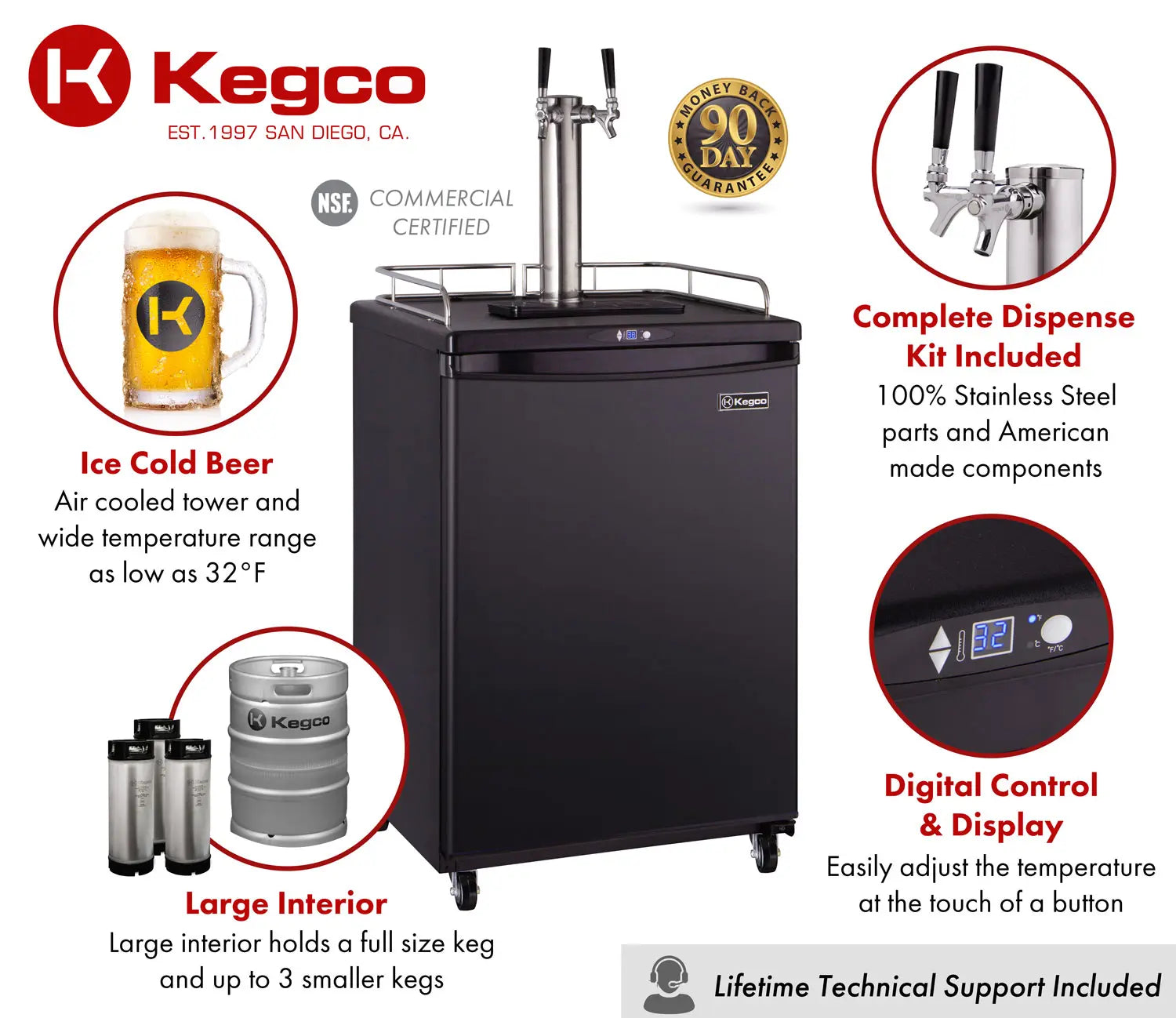

• Features fan-forced cooling, an air-cooled tower, and a wide 32-75 degree temperature range for superior cooling and precise temperature control

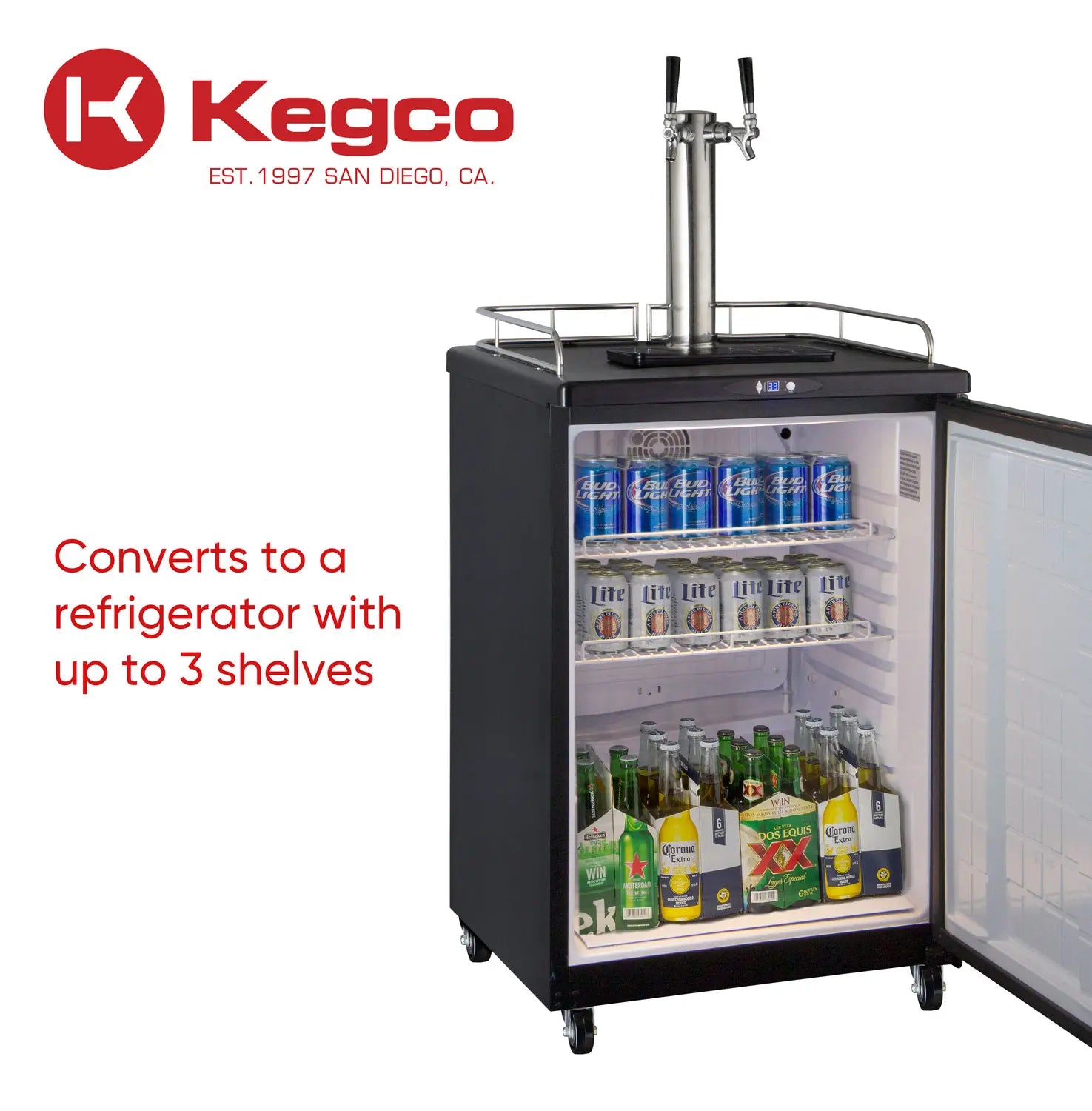

• This versatile beer cooler can be converted into a regular all-refrigerator with the three included wire shelves, giving you additional refrigerated storage space for food and other beverages
• Comes complete with a dual tap draft dispense system that features 100% stainless steel contact

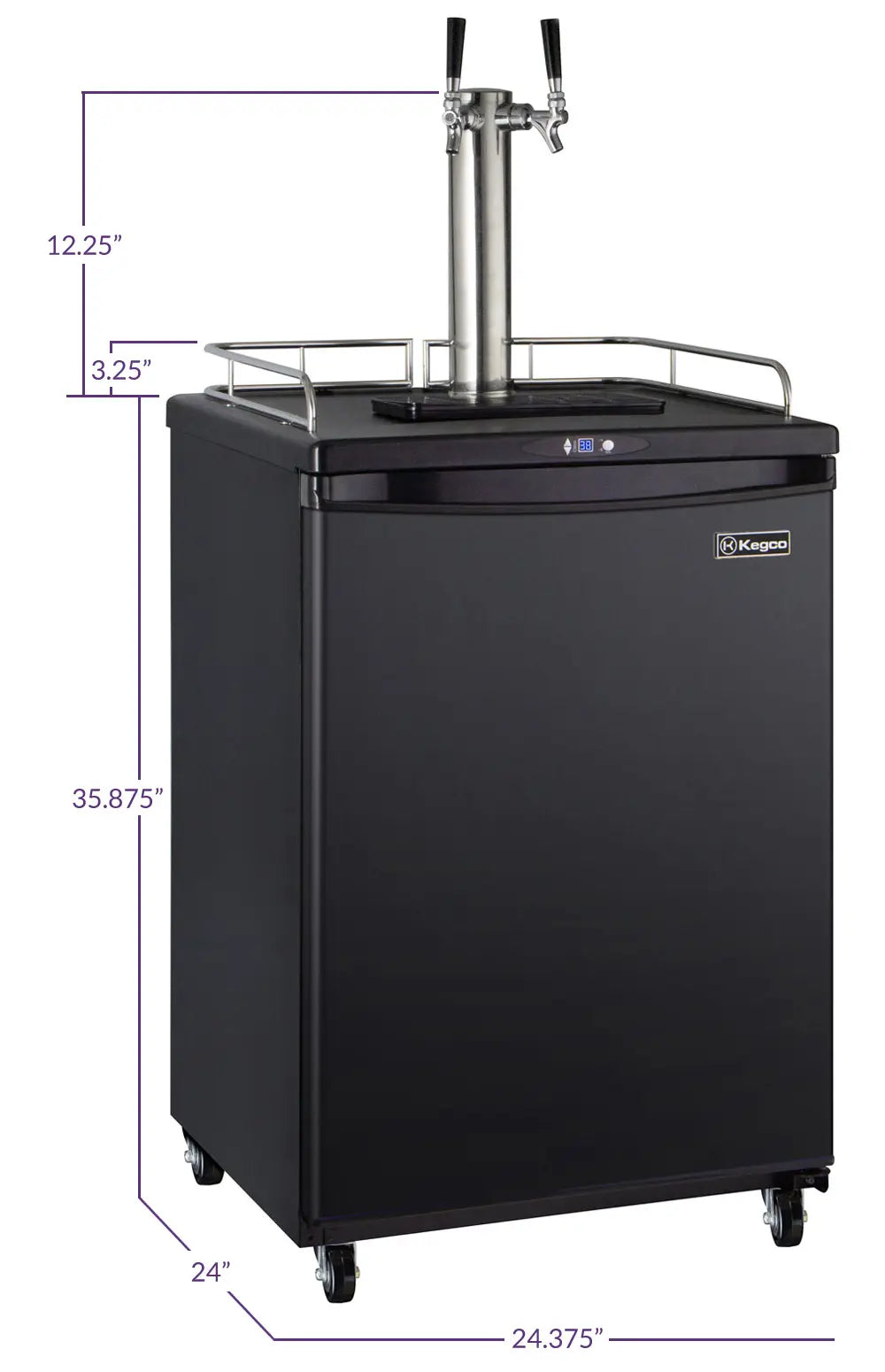

  Dimensions: 35.875" H x 24.375" W x 24" D

FEATURES

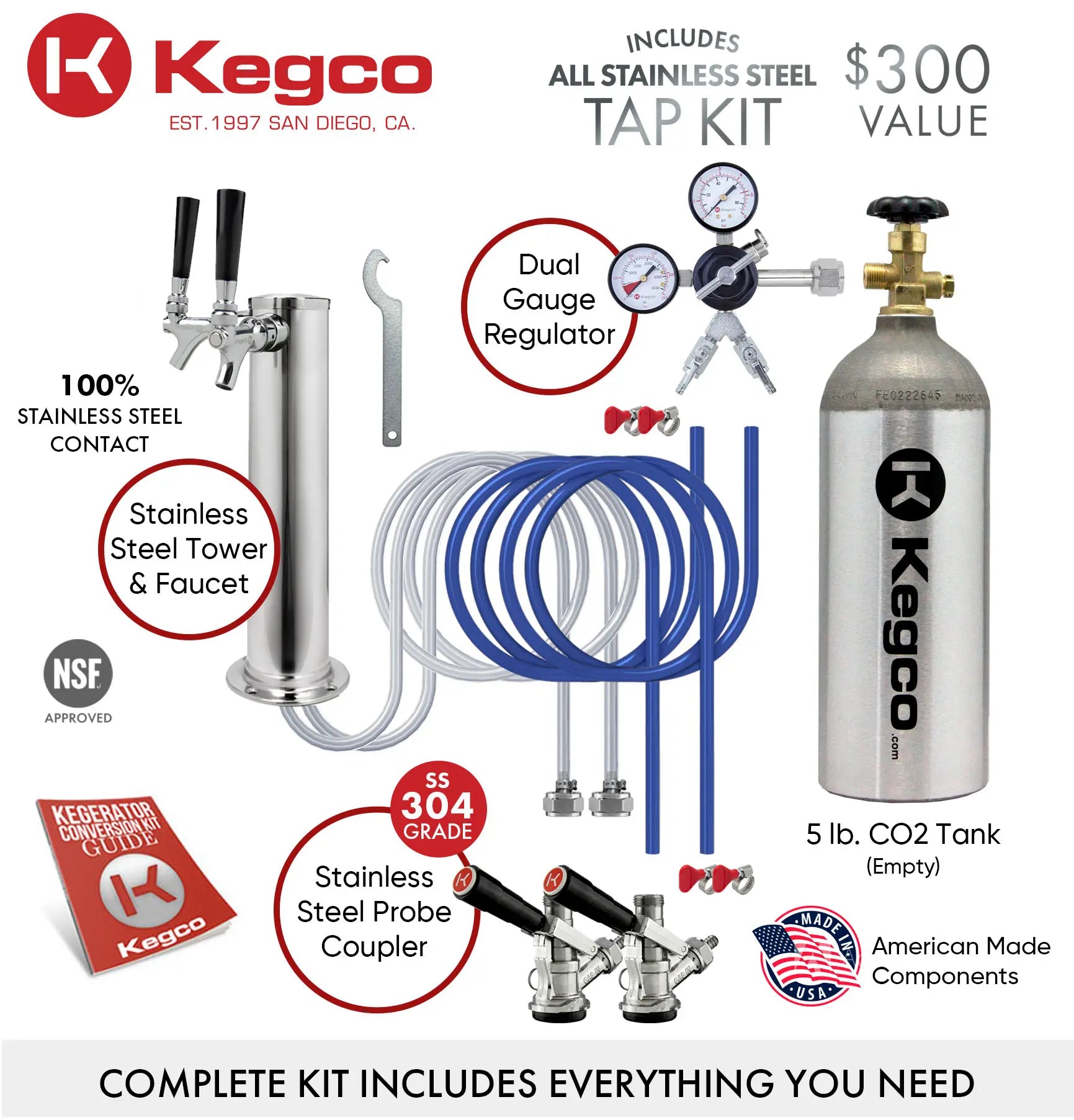

• Includes a brand new 5 lb. Aluminum CO2 Tank
  This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada markings. The 320 valves are CGA approved, and have a male thread for CO2 regulators. An average fill is good for 5-6 kegs depending upon your fill.
• Includes Commercial Grade Dual Gauge Two Product CO2 Regulator
  The regulator works with any CO2 tank with a CGA-320 valve and measures PSI, as well as the volume of the CO2 gas in the cylinder. It has a pressure release valve and a large hand control which makes it easy to adjust the pressure inside the keg.

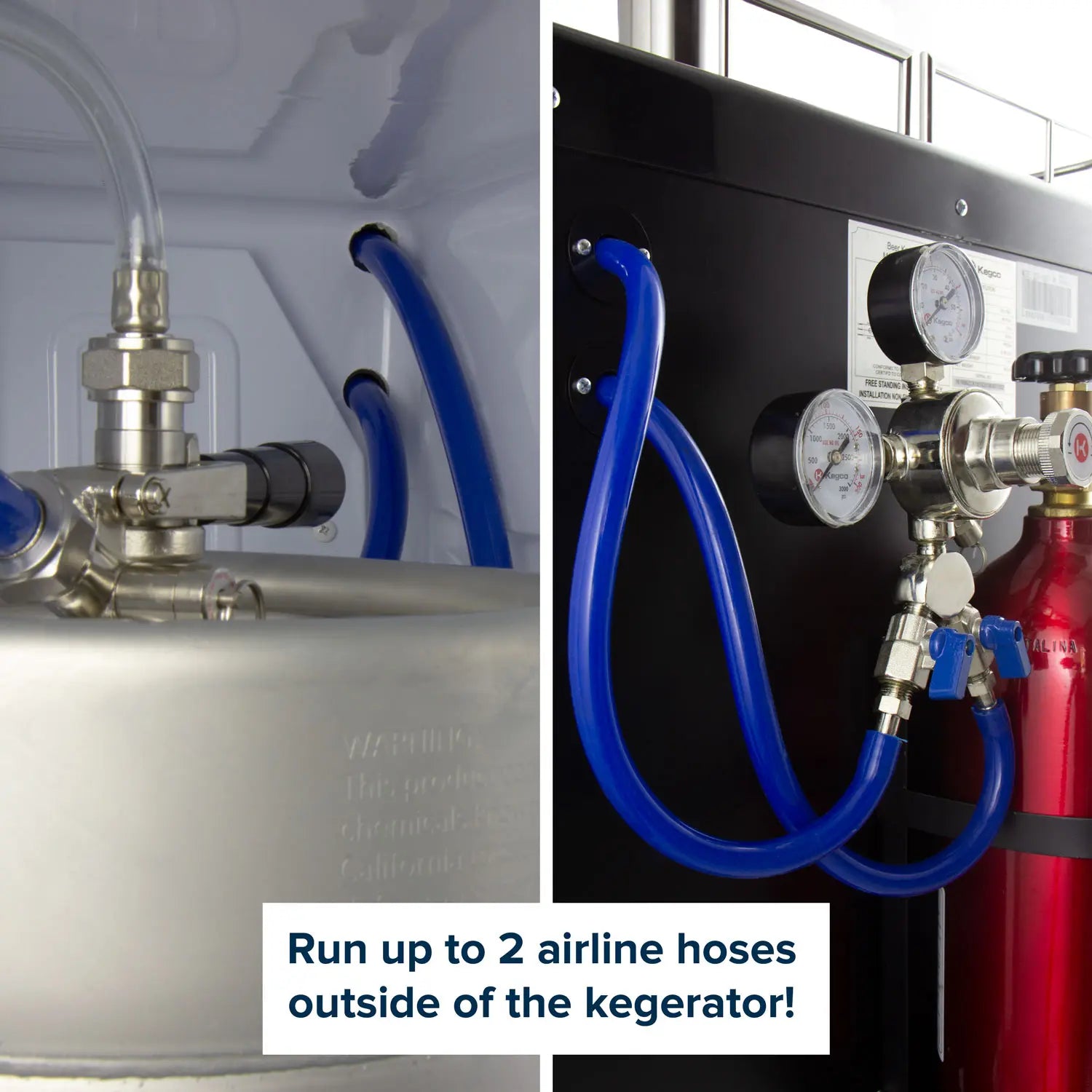

• Includes two 5 foot lengths of 5/16 Inch I.D. Blue Air Line Assembly with Snap Clamps
  These standard 5 foot lengths of 5/16" I.D. blue air/CO2 tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. Each air line assembly comes with two plastic snap clamps with a reusable clamp design.
• Includes two D system lever handle keg couplers
  These commercial grade lever handle keg couplers work with all American "D" system Sankey kegs. They feature 55-psi pressure relief valves and nickel-plated forged brass bodies. To tap a keg, simply pull out and then down on the lever handle.
• Includes a Kegco Exclusive 14" Tall, 3" Diameter Dual Faucet Polished Stainless Steel Draft Tower
  This NSF-approved tower is a 3" diameter dual faucet metal draft tower made of polished stainless steel. It comes complete with two stainless steel faucets and two 5 foot lengths of 3/16" I.D. clear beer tubing. The tower is mounted using the gasket and four screws that are included. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers.
• All dispensing accessories are UL recognized components
• Converts to a refrigerator with 3 full-width wire shelves
• Large enough to hold all full size kegs (including Coors, Miller, and many additional brands)
• Holds 1/2 barrels, full size kegs (15.5 gallons), 1/4 barrels, ponies (7.75 gallons), and 1/6 barrels (5 gallons)

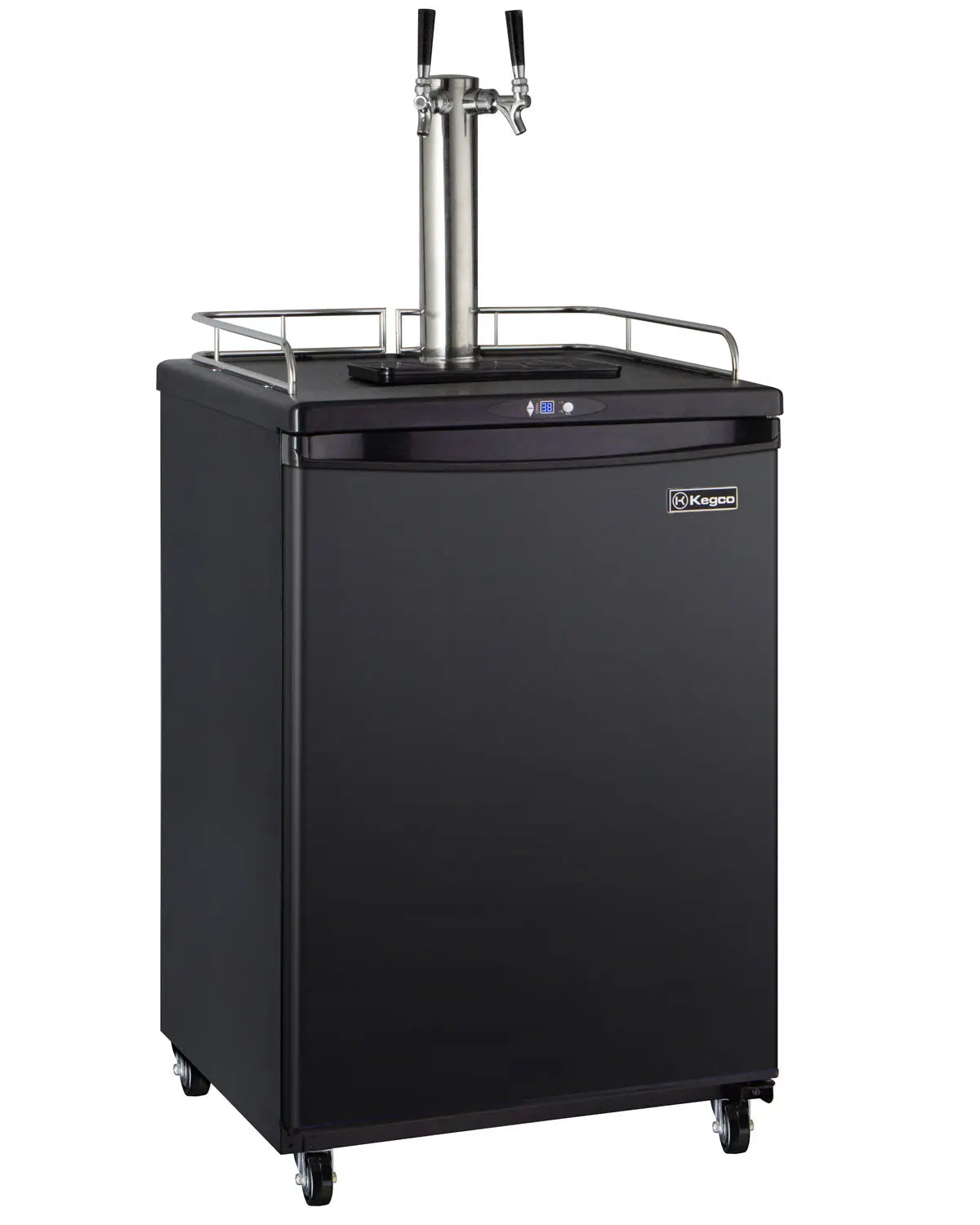

• Matte black cabinet with matching black door
• Digital temperature control allows you to adjust the temperature between 32 and 75 degrees Fahrenheit
• Maximum Ambient Temperature: 90 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• A great choice for dispensing beer, soda, kombucha, and wine
• Easy roll casters provide convenient mobility
• Removable built-in drip tray with grill collects drips and spills
• Chrome guard rail helps prevent mugs and glasses from sliding off
• Steel interior floor mat ensures long-lasting durability and allows kegs to glide easily in and out of the cabinet
• 25% more energy efficient design saves you money each month!
• Plugs into standard home outlets
• CSA listed to conform to NSF/ANSI 7

SPECS

Dimensions
Height	35"
Width	24"
Depth	24.25"

Weight
Unit Weight	125 lbs.

Warranty
Labor	1 Year
Parts	1 Year
Compressor (Parts Only)	5 Years

Exterior
Cabinet	Black
Drip Tray	Yes
Guard Rail	Yes
Casters	Yes

Keg Storage Capacities
Full Size / 1/2-Barrel	1
Pony Size / 1/4-Barrel	1
1/4-Barrel Slim	1
1/6-Barrel	2
5 gal. Ball/Pin Lock Keg	3 Ball Lock/2 Pin Lock

Key Features
Built-in Capable	No
Keg Coupler	D System
Security Lock	No
Regulator	Dual Gauge
CO2 Tank	5 lb.
Cleaning Kit	Optional Add-On
Outdoor Use	No
Commercial Use	Yes

Door
Color / Material	Black
Number of Doors	1
Door Handle	Recessed
Field Reversible	Yes
Accepts Custom Overlay Panel	No

Draft Beer Tower
Number of Faucets	1
Material	Stainless Steel
Height	14.25"
Diameter	3"

Cooling System
Type	Compressor
Defrost System	Auto
Front Ventilation	No

Controls
Adjustable Thermostat	Yes
Digital	Yes

Electrical
Electrical Requirements	115v/ 60Hz
Running Amps	2.3 A

WARRANTY

Labor - 12 Months

LIMITED ONE YEAR WARRANTY

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished.

Parts - 60 Months

LIMITED SECOND THROUGH FIFTH YEAR WARRANTY:

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges.

Additional Details

WHAT IS NOT COVERED:

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
