DESCRIPTION

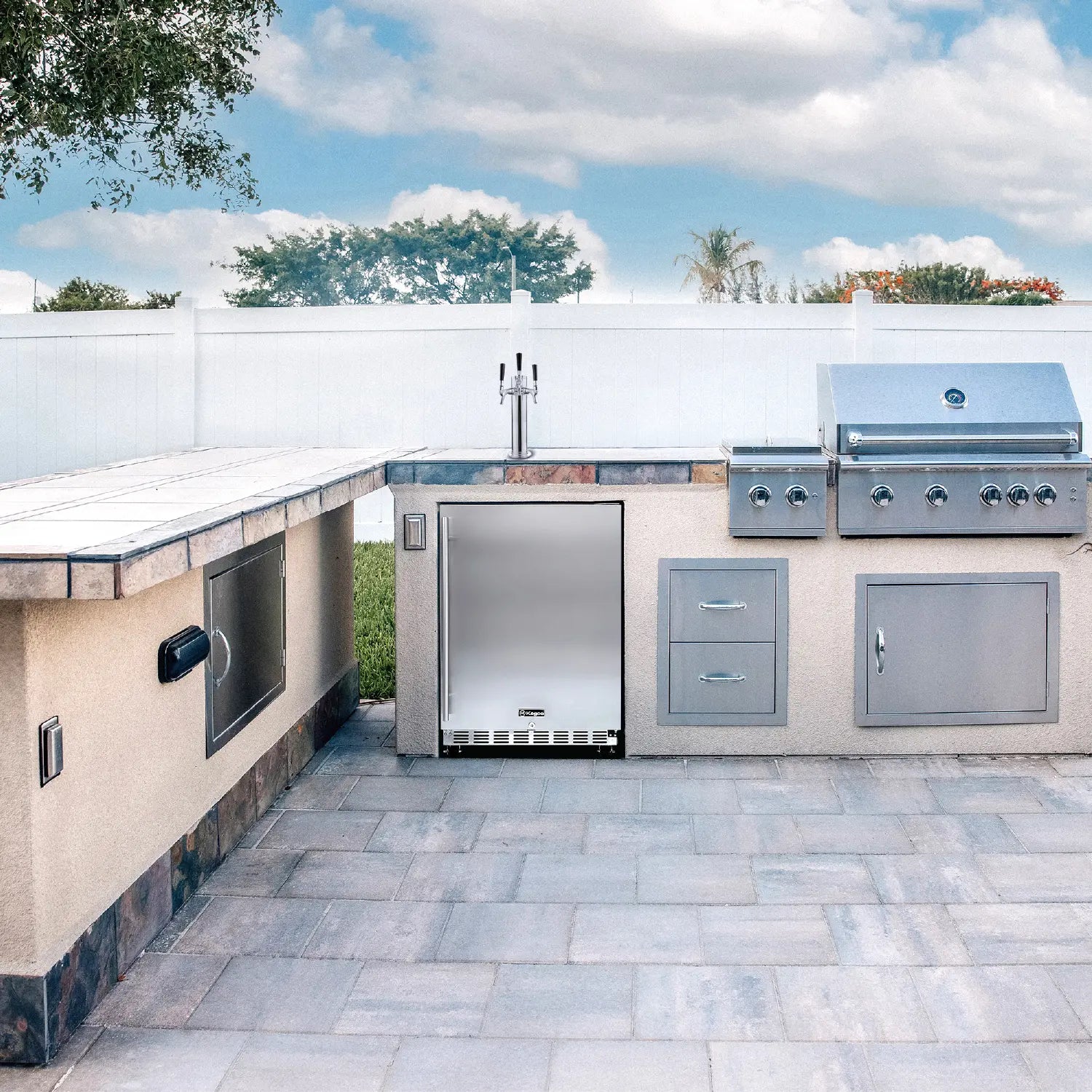

• Outdoor kegerator can be built in undercounter to provide a seamless look to your backyard BBQ island or outdoor kitchen
• Premium dispense components include 100% Stainless Steel Beer Contact, Premium Double Gauge Regulator, and Corrosion-resistant Electric Red CO2 Tank

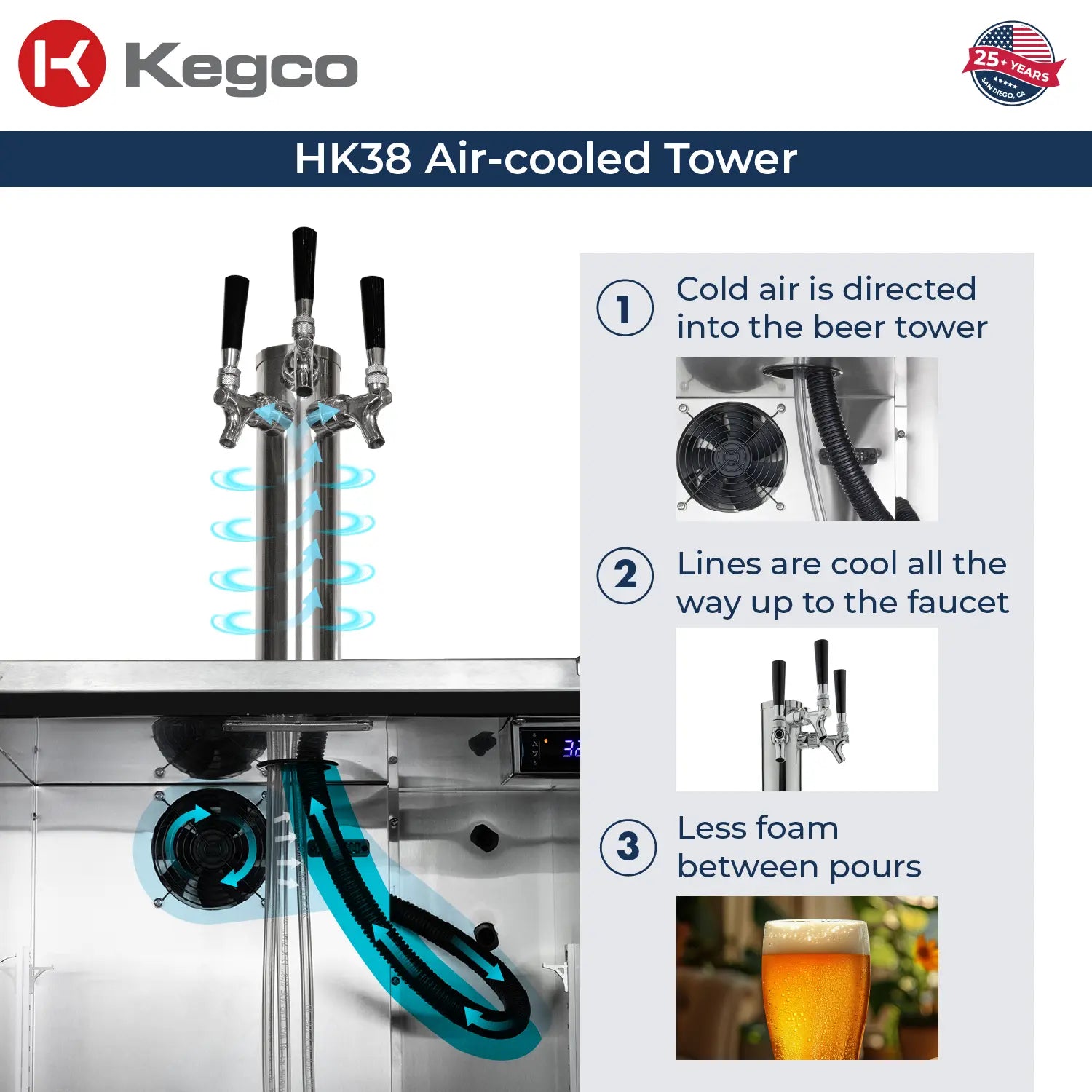

• Utilizes forced air refrigeration for even cooling and an air-cooled draft tower that ensures that every drop is served ice cold
• At 3200 BTUs, it boasts a commercial grade compressor that is the most powerful in its class, delivering unbeatable cooling for faster recovery and temperature pulldown
• One of the widest temperature ranges available on the market allows this versatile kegerator to serve ice cold beer or dispense wine at the proper temperature

FEATURES

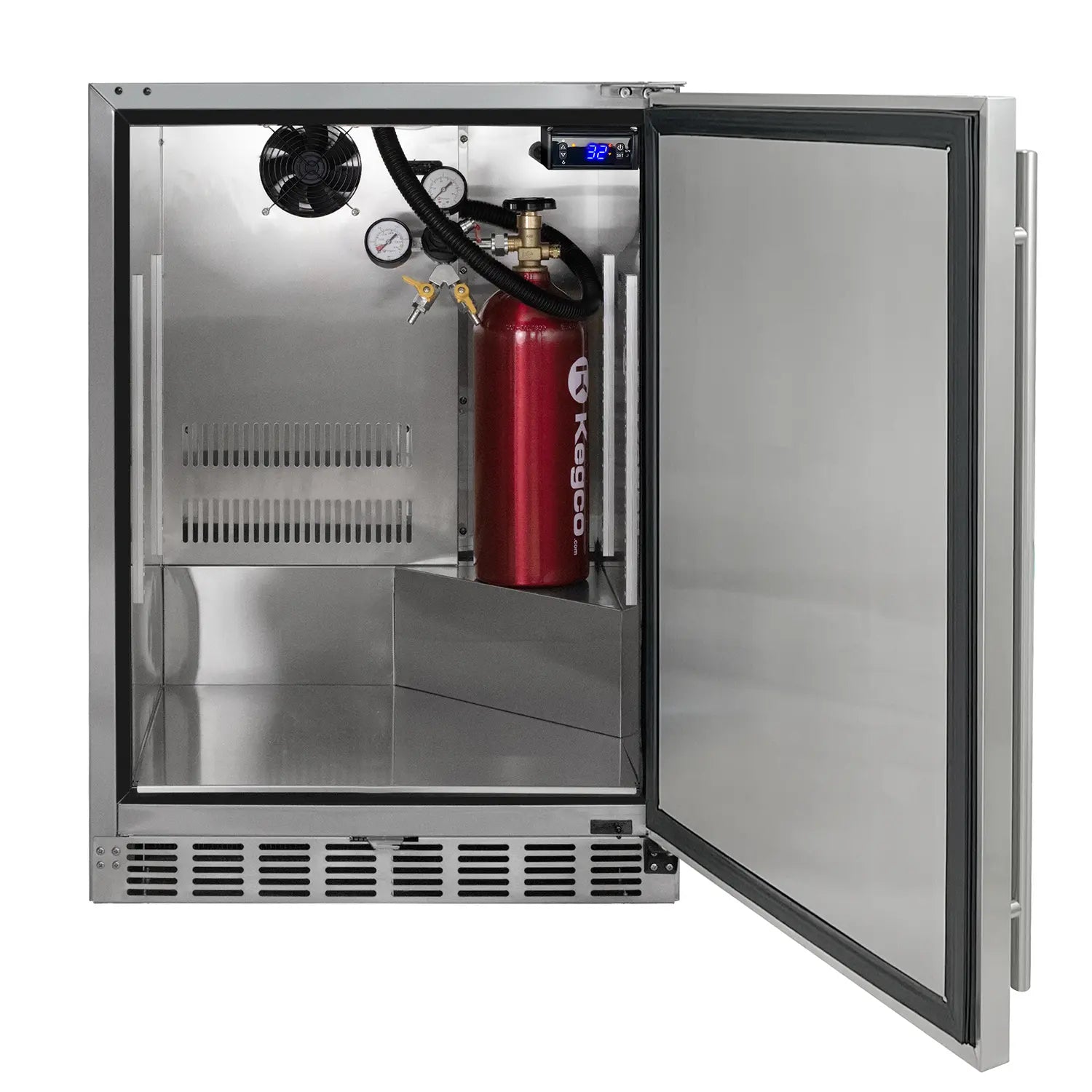

• Includes a brand new 5 lb. Aluminum CO₂ Tank with Electric Red Epoxy Finish
  This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. It features an eye-catching glossy powder coated epoxy finish in electric red that acts as an extra layer of protection against corrosion and wear. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada markings. The 320 valves are CGA approved, and have a male thread for CO₂ regulators. An average fill is good for 5-6 kegs depending upon your fill.

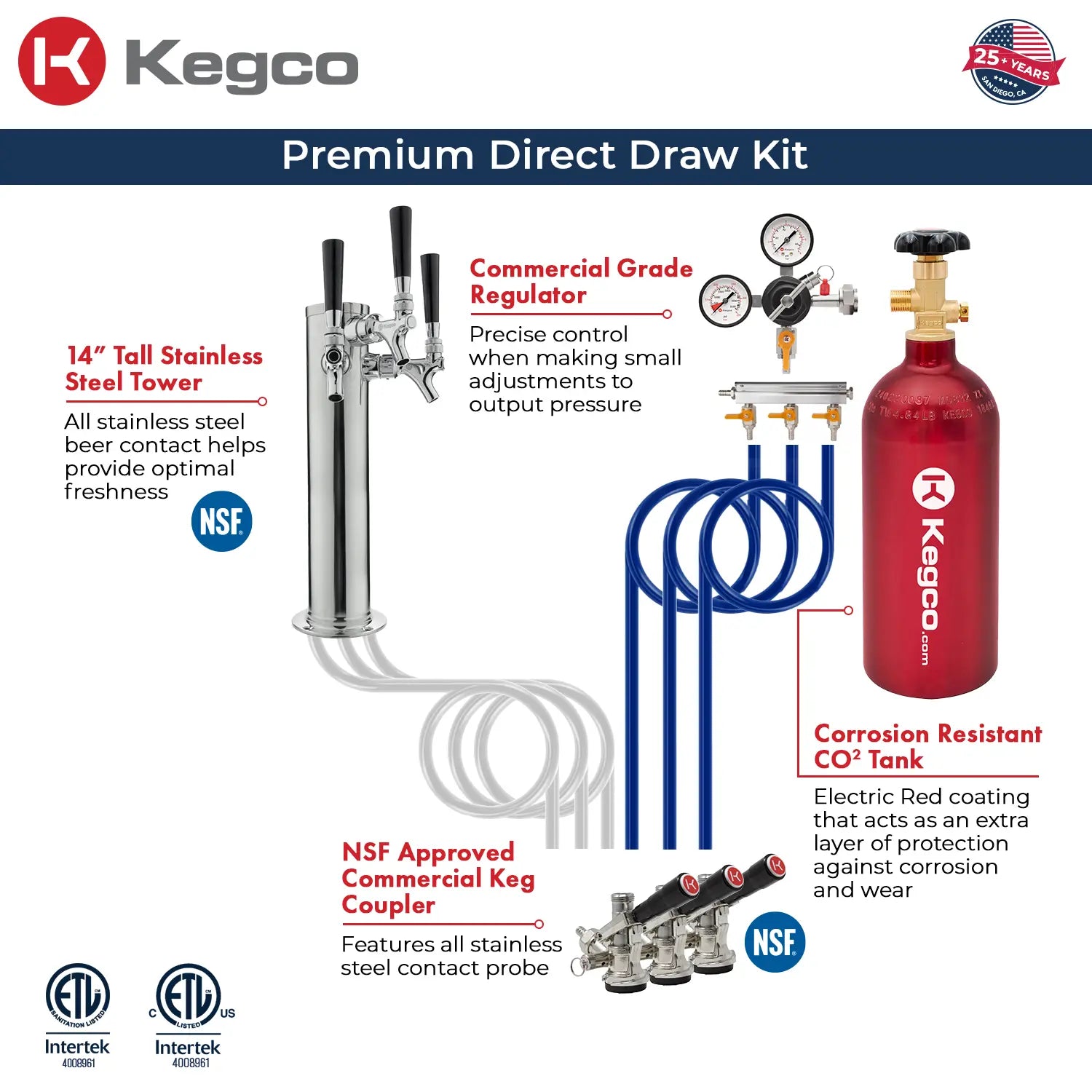

• Includes Premium Double Gauge CO₂ Regulator with Air Distributor
  The regulator works with any CO₂ tank with a CGA-320 valve and measures PSI, as well as the volume of the CO₂ gas in the cylinder. It has a pressure release valve and a large hand control that makes it easy to adjust the pressure inside of the keg. The regulator comes with a three-way air distributor with three shut-off valves to deliver CO₂ to up to three kegs at the same pressure.
• Includes three D system lever handle keg couplers that can tap all domestic kegs
  These commercial grade lever handle keg couplers work with all American "D" system Sankey kegs. They feature 55-psi pressure relief valves and nickel-plated forged brass bodies. To tap keg, simply pull out and then down on the lever handle.

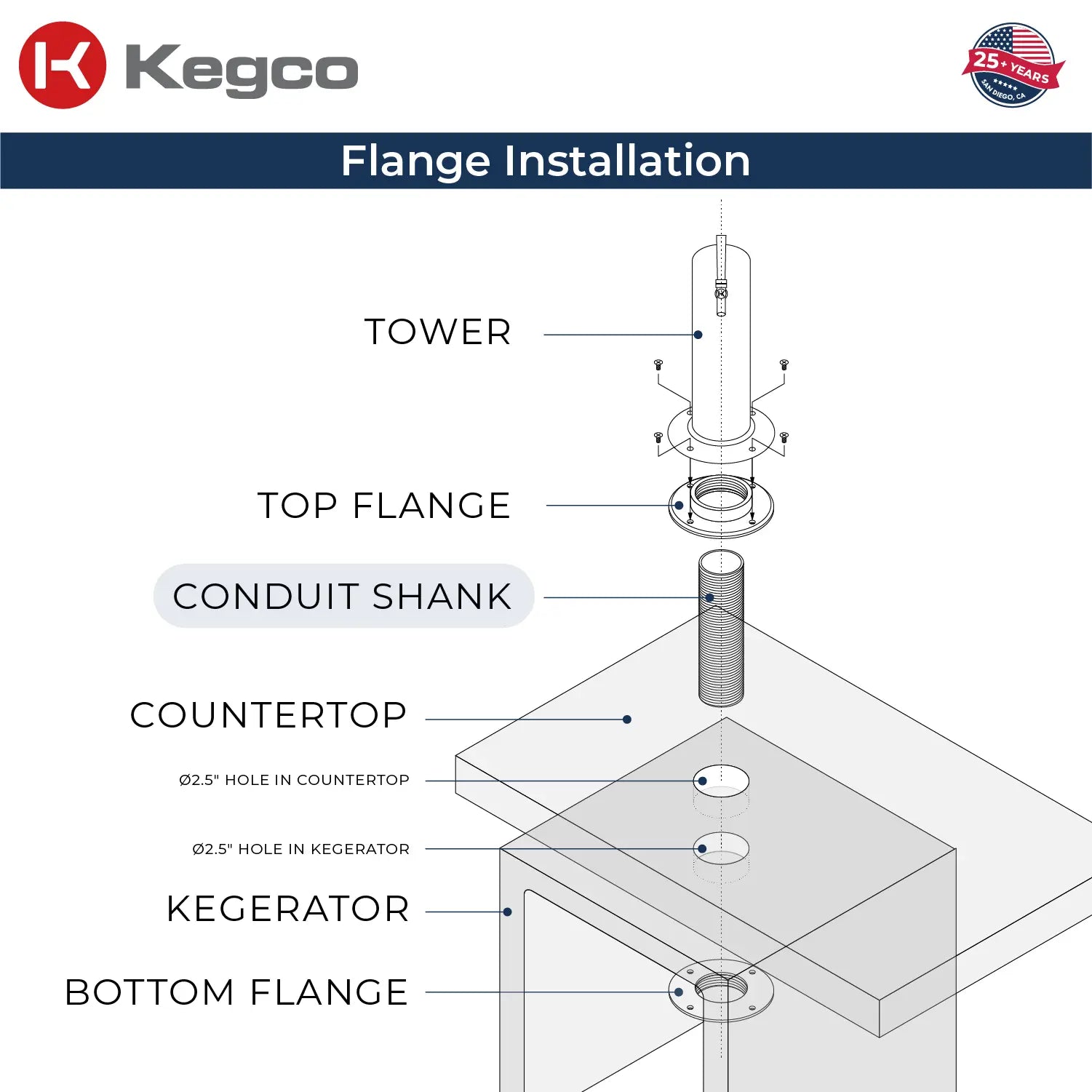

• Includes a Kegco Exclusive 14.5" tall, 3" diameter Polished Stainless Steel Draft Tower

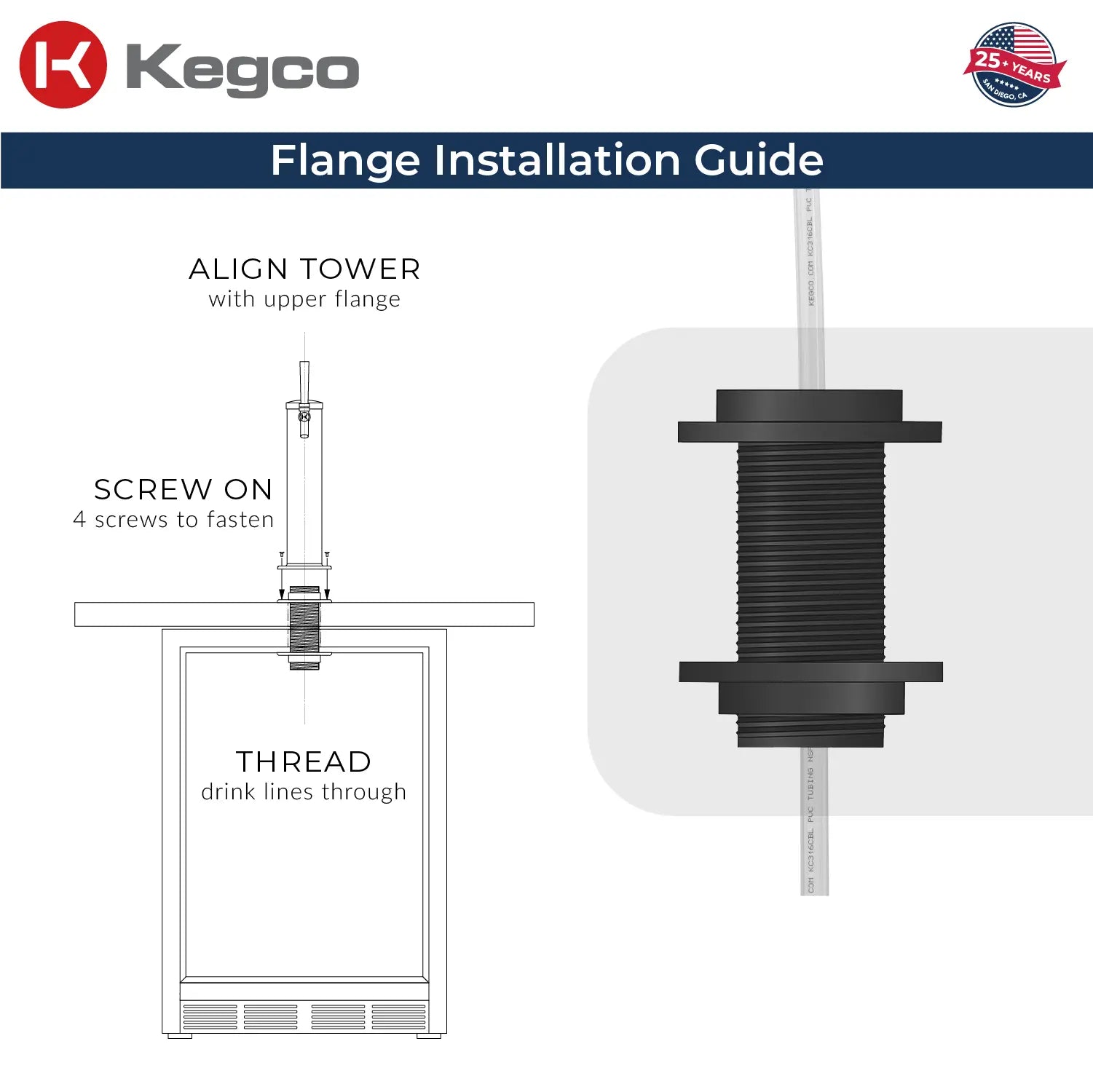

  This NSF-approved tower is a 3" diameter triple faucet metal draft tower made of polished stainless steel. It comes complete with three stainless steel faucets and three 5 foot lengths of 3/16" I.D. clear beer tubing. The extra tall 14.5" height makes it easier to fill growlers and tall pint glasses. This tower is mounted using the gasket and four screws that are included.
• All dispensing accessories are UL recognized components

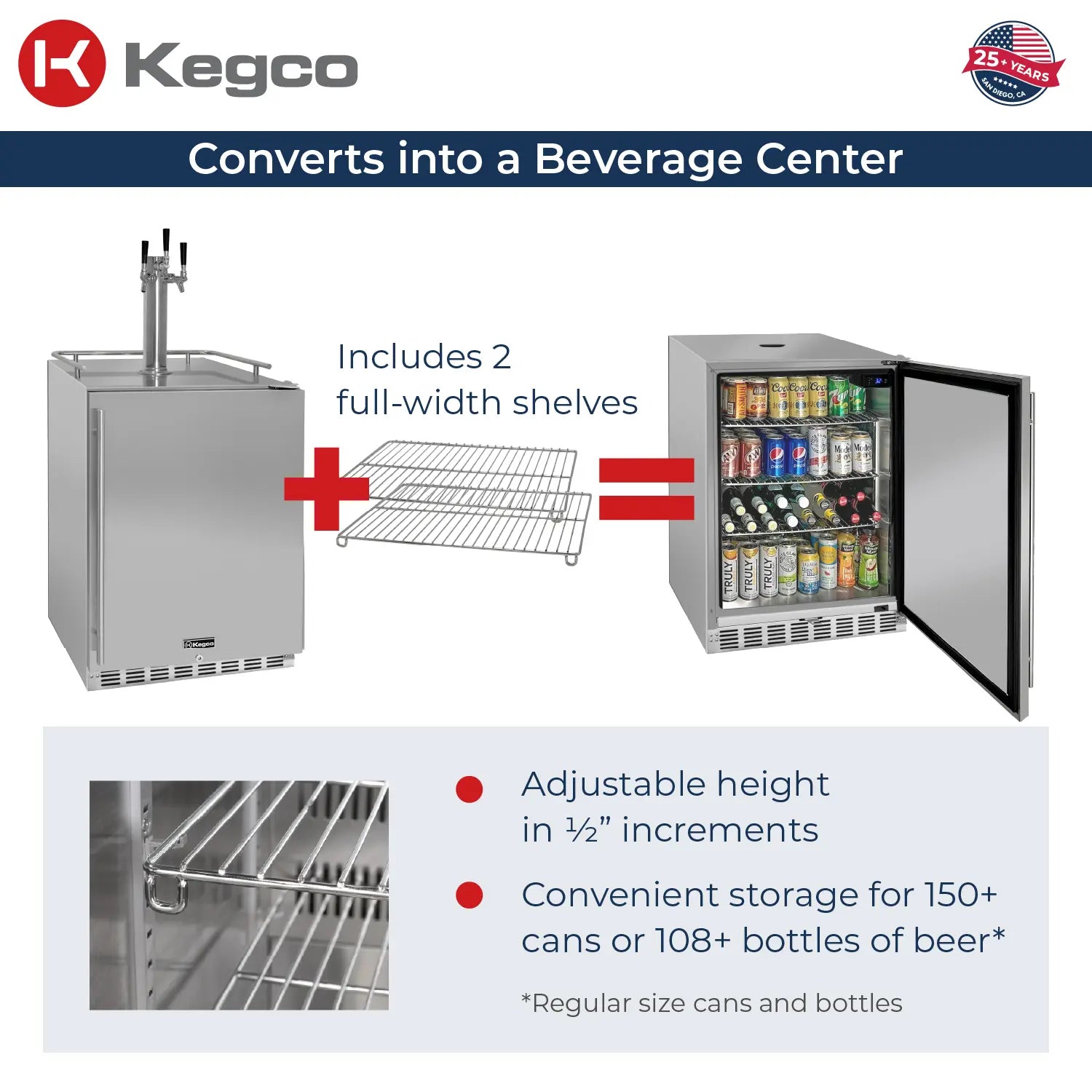

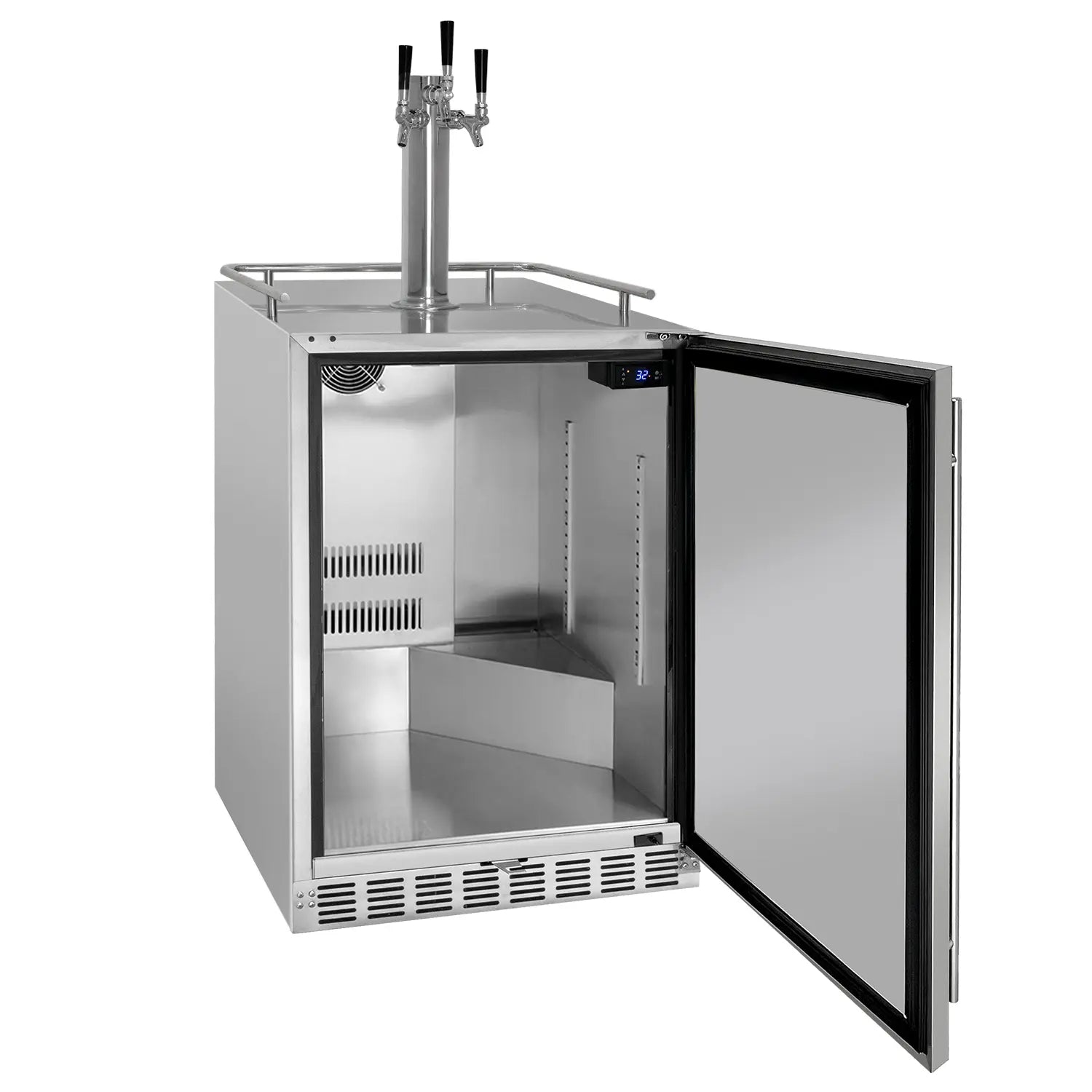

• Converts into a refrigerator using 2 full-width shelves that can be adjusted in 1/2" increments

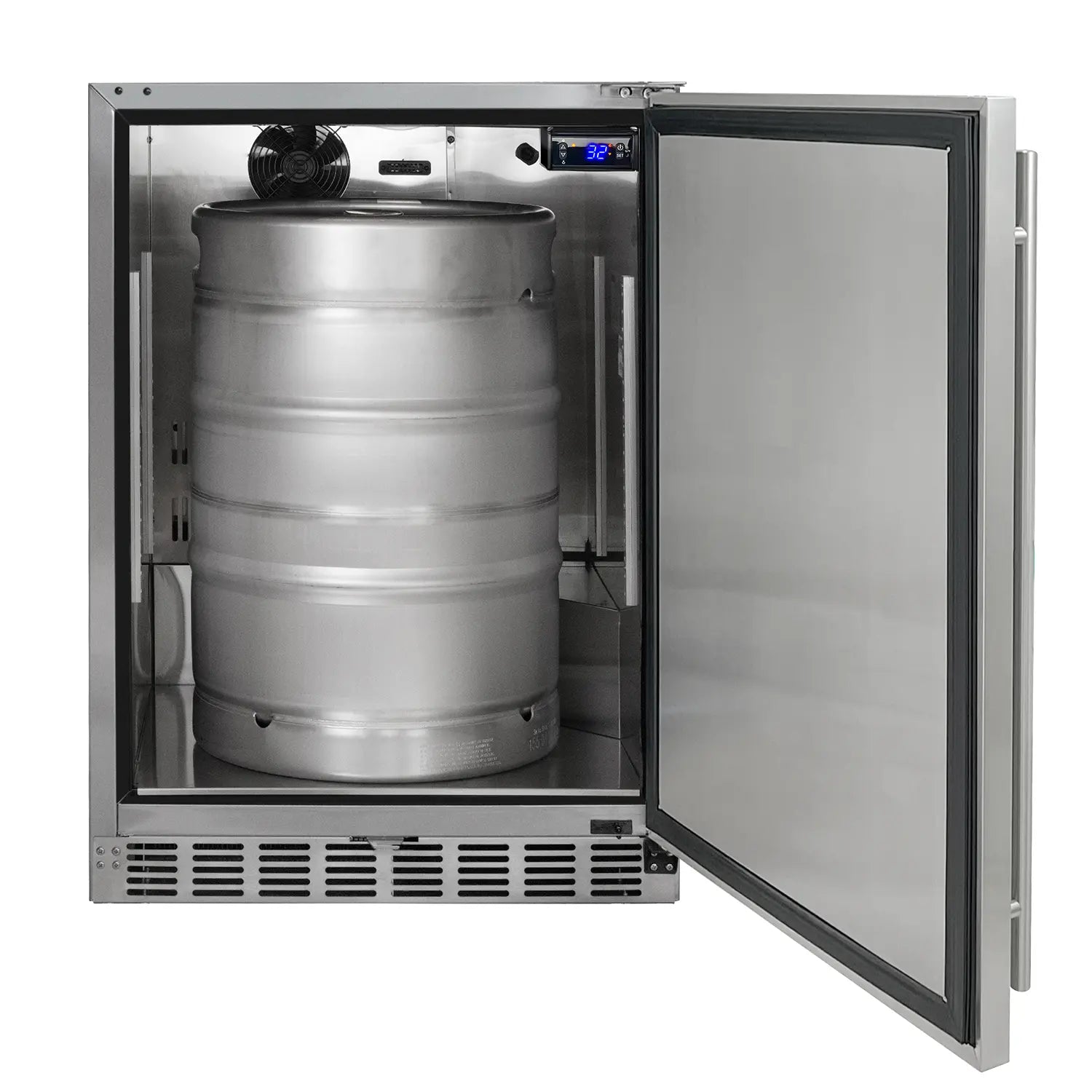

• Large enough to hold most full size kegs, including Coors and Miller. Interior height is a limitation, so kegs that are taller than the standard half barrel (23.25") may not fit with the keg coupler installed. We have run into this issue with certain German kegs along with the M system coupler, but most major brands in D and S System kegs will not be an issue.

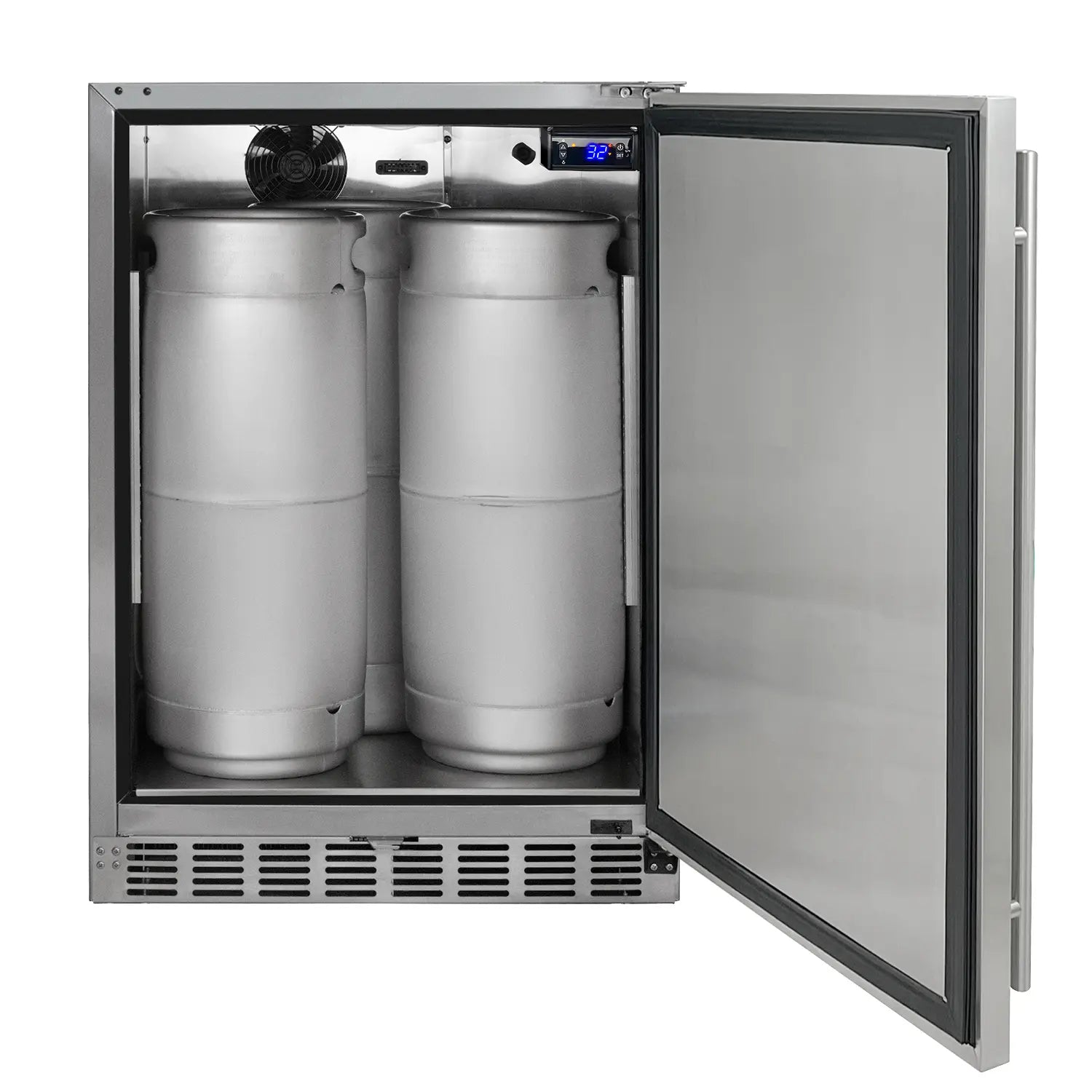

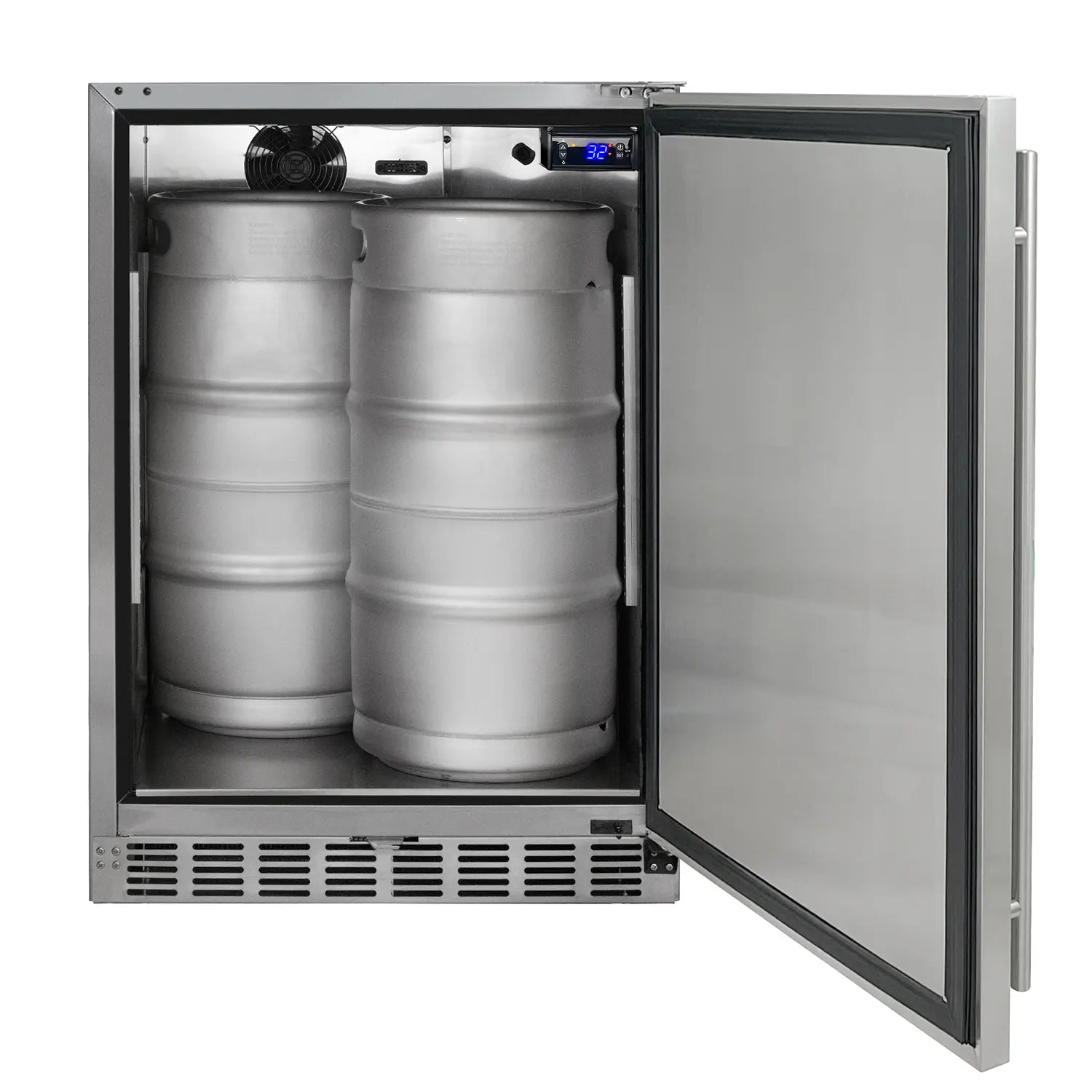

• Holds (1) full-size keg, (2) quarter slim kegs, (3) 5 gallon commercial kegs, or (3) 5 gallon home brew kegs
• PLEASE NOTE: Will not hold 50L European kegs

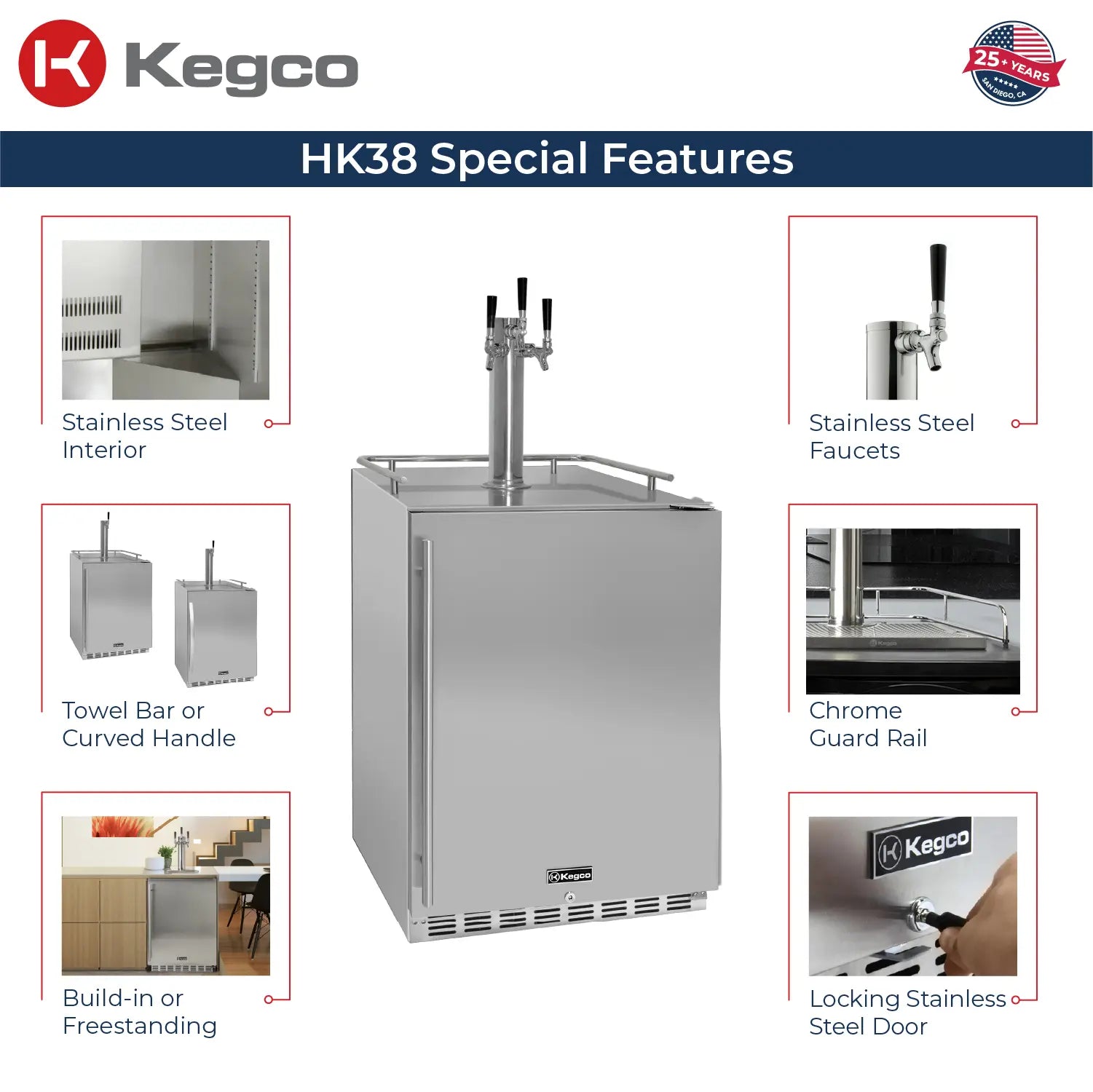

• Durable all stainless steel exterior makes it suitable for outdoor use

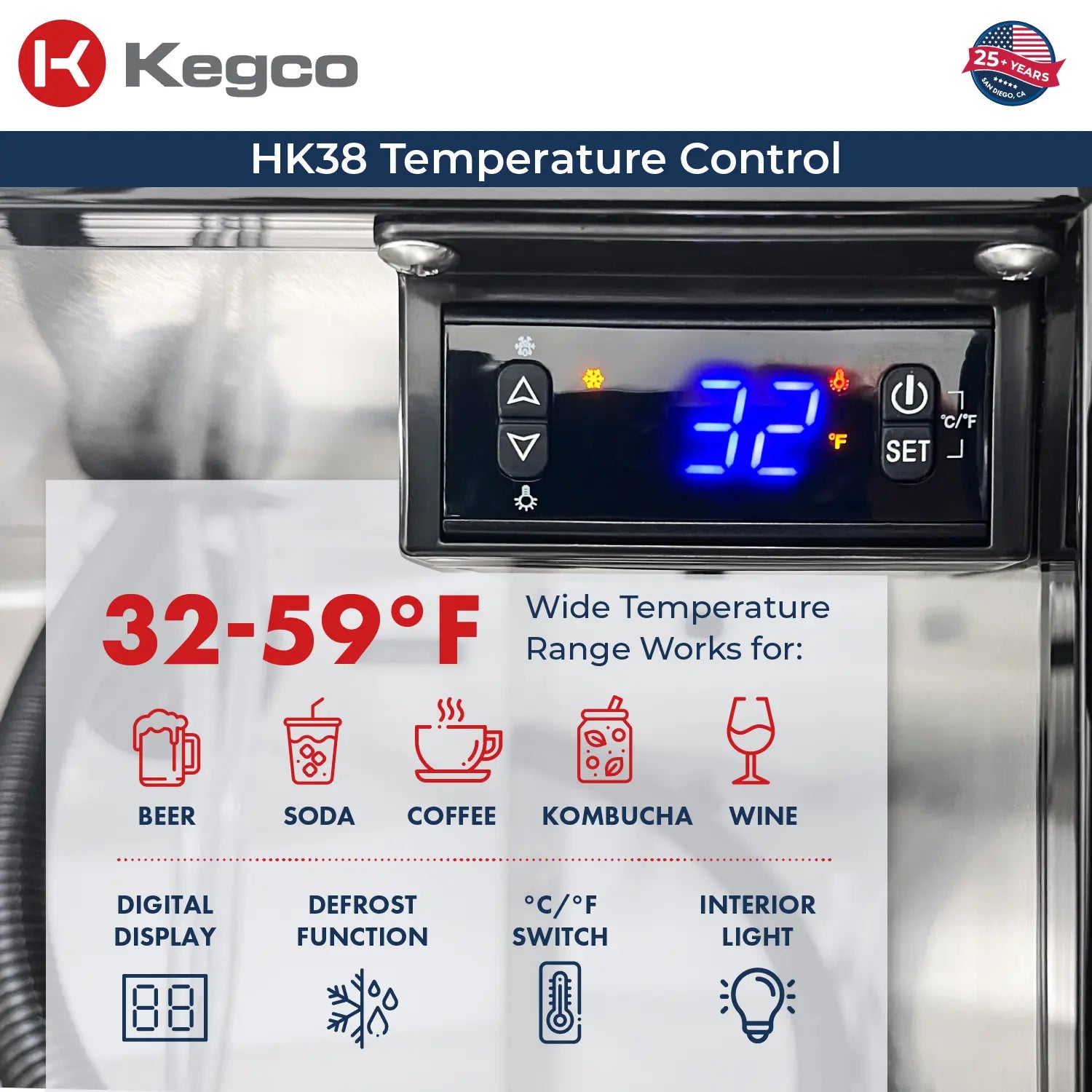

• Digital temperature control keeps temperature between 32-59 degrees Fahrenheit
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the ambient temperature.
• A perfect option for dispensing beer, soda, kombucha, wine or cold brew coffee
• Stainless steel guard rail helps prevent mugs and glasses from sliding off
• Plugs into standard home outlet

SPECS

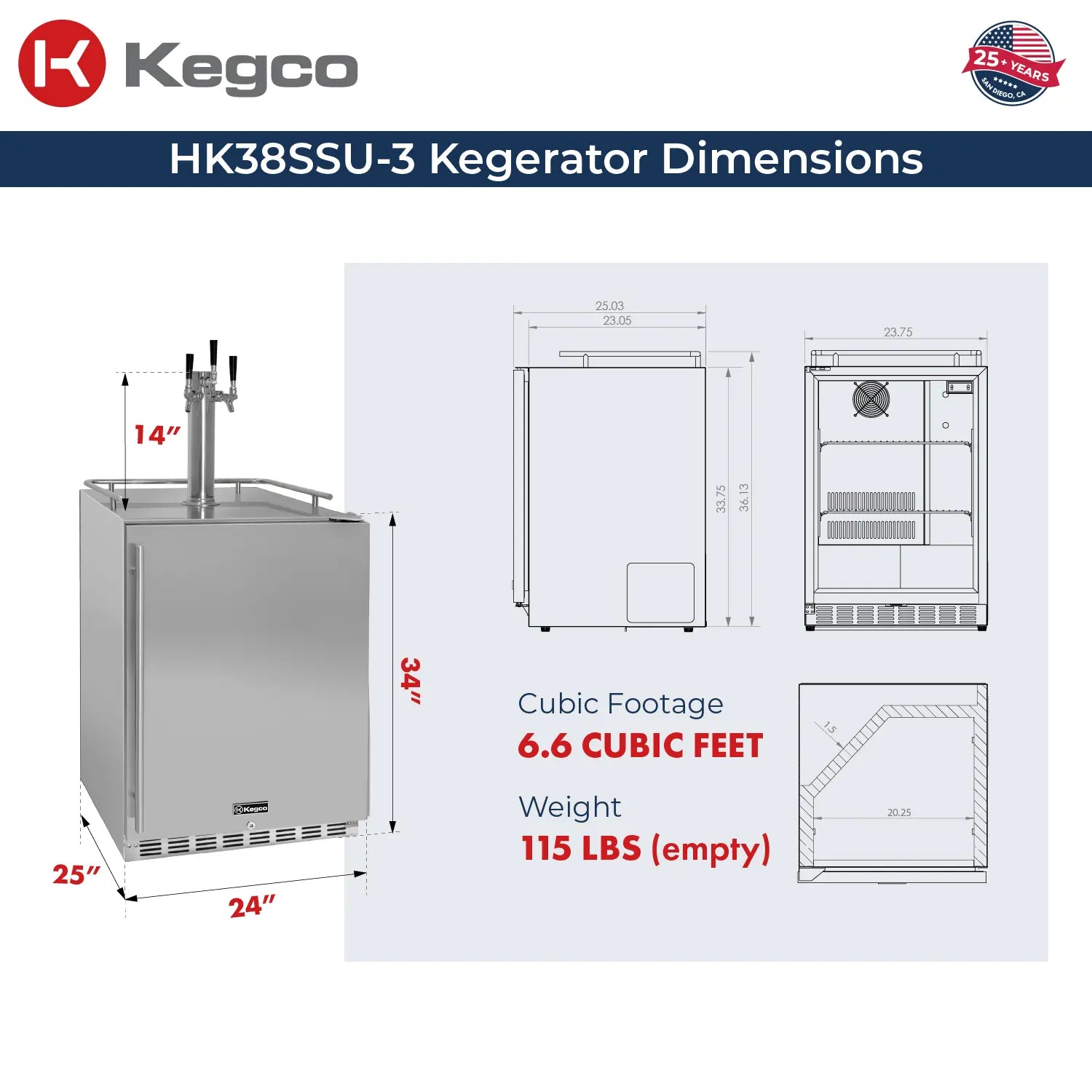

Dimensions
Height	34-1/8"
Width	24"
Depth	25" (without Handle)

Weight
Unit Weight	96.8 lbs.
Shipping Weight	150 lbs.

Warranty
Labor	1 Year
Parts	1 Year
Compressor (Parts Only)	5 Years

Exterior
Cabinet	Stainless Steel
Drip Tray	No
Guard Rail	Yes
Casters	Yes

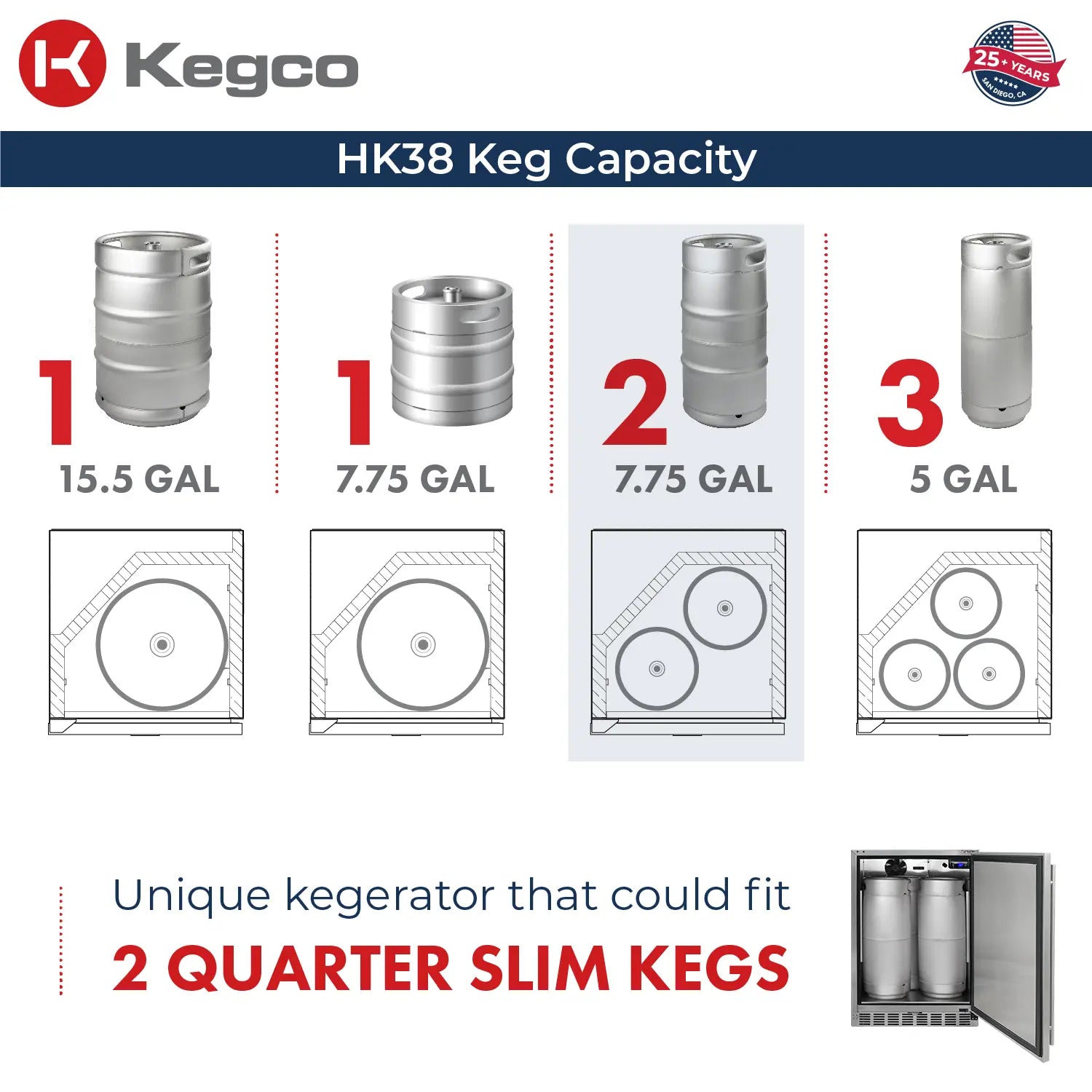

Keg Storage Capacities
Full Size / 1/2-Barrel	Holds 1
Pony Size / 1/4-Barrel	Holds 1
1/4-Barrel Slim	Holds 2
1/6-Barrel	Holds 3
5 gal. Ball/Pin Lock Keg	Holds 3
5-Liter / Mini Keg	Holds 3

Key Features
Built-in Capable	Yes
Keg Coupler	Yes
Security Lock	Yes
Regulator	Yes
CO2 Tank	Yes
Cleaning Kit	Optional Add-On
Outdoor Use	Yes
Commercial Use	Yes

Door
Color / Material	Stainless Steel
Number of Doors	1
Door Handle	Towel/Curved
Field Reversible	No
Accepts Custom Overlay Panel	No

Draft Beer Tower
Number of Faucets	3
Material	Stainless Steel
Height	14"
Diameter	3"

Cooling System
Type	Compressor
Defrost System	Manual
Front Ventilation	Yes

Controls
Adjustable Thermostat	Yes
Digital	Yes

Electrical
Electrical Requirements	115v/60hz
Running Amps	1.7 A

WARRANTY

Labor - 12 Months

LIMITED ONE YEAR WARRANTY

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished.

Parts - 60 Months

LIMITED SECOND THROUGH FIFTH YEAR WARRANTY:

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges.

Additional Details

WHAT IS NOT COVERED:

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
