DESCRIPTION

This Kegco K309B-1A Digital Single Faucet Kegerator adds digital functionality and a wider available temperature range to one of the best kegerators you can find. Your favorite features from our other high-quality Kegco Draft Beer Dispensers are still included, such as attractive styling, a removable and easy to clean built-in drip tray, a chrome guard rail to prevent your glasses from sliding off the top, and easy rolling casters that allow you to move the unit from room to room with ease. Now, in addition to having a wider available temperature range for more precise temperature control, you also have the ability to view your specific temperature setting and easily set it with the push of a button.

• Can be converted into an all-refrigerator using the 2 included adjustable shelves for additional refrigerated storage
• Comes complete with an A system keg tap coupler for German Beer dispense system that features 100% stainless steel contact
• Features digital temperature control and fan forced cooling for one of the largest temperature ranges on the market (32-75°F)
• Spacious interior easily accommodates one 1/2-barrel or 1/4-barrel, two 1/6-barrels, or three home brew kegs
• Includes chrome guardrail, easy roll locking casters, and dishwasher safe removable built-in drip tray

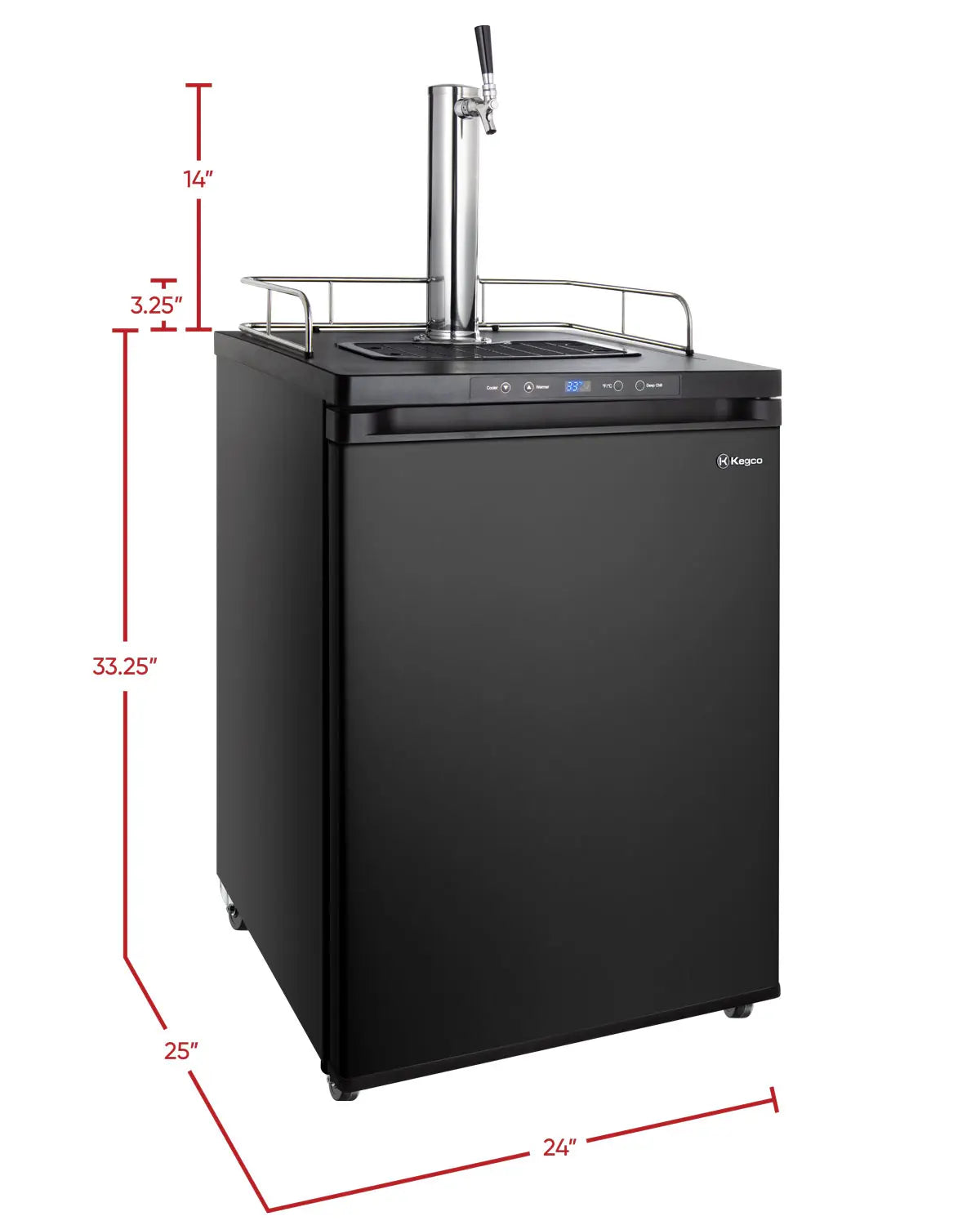

  Dimensions: 33.25" H x 24" W x 25" D

FEATURES

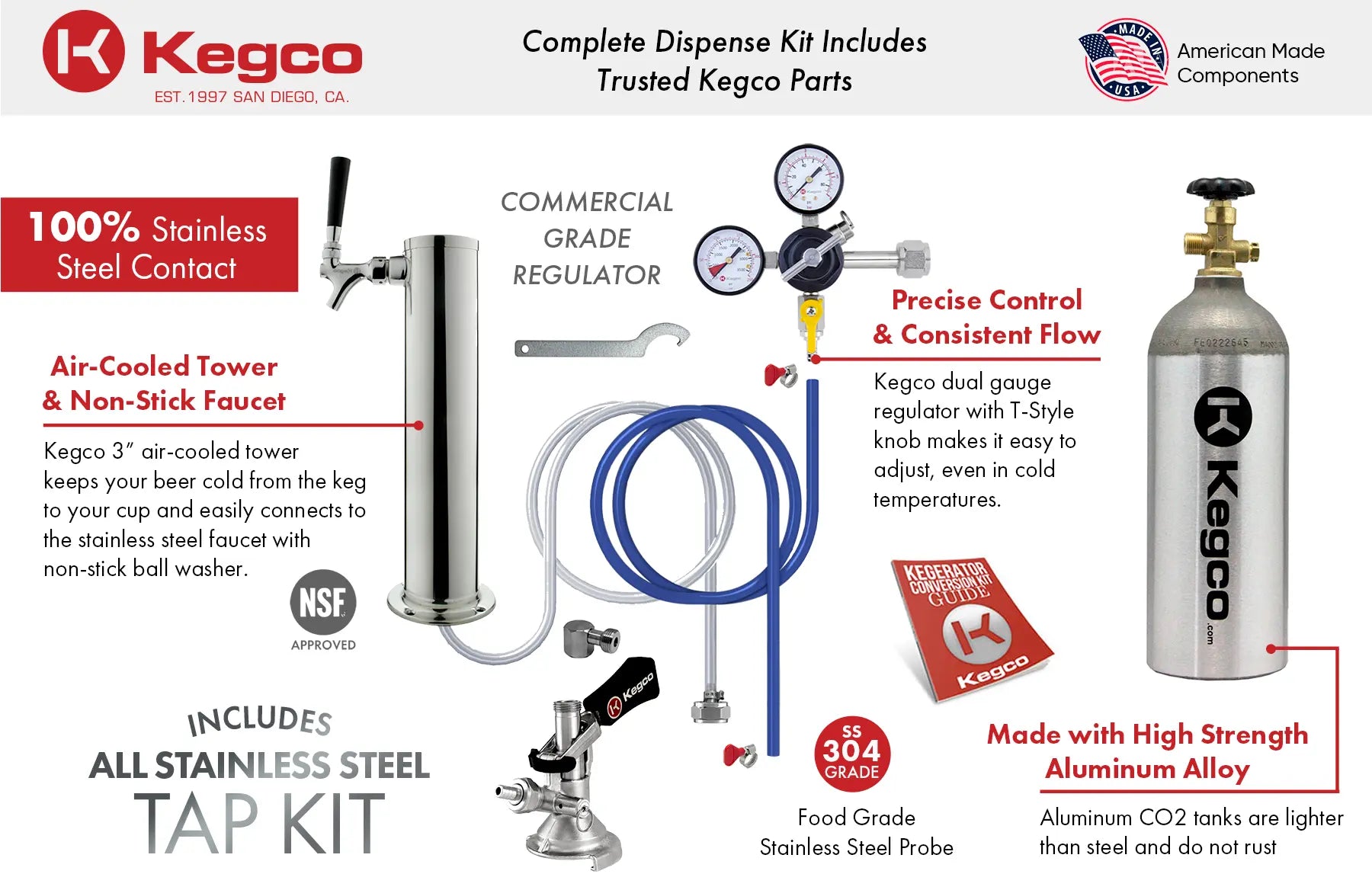

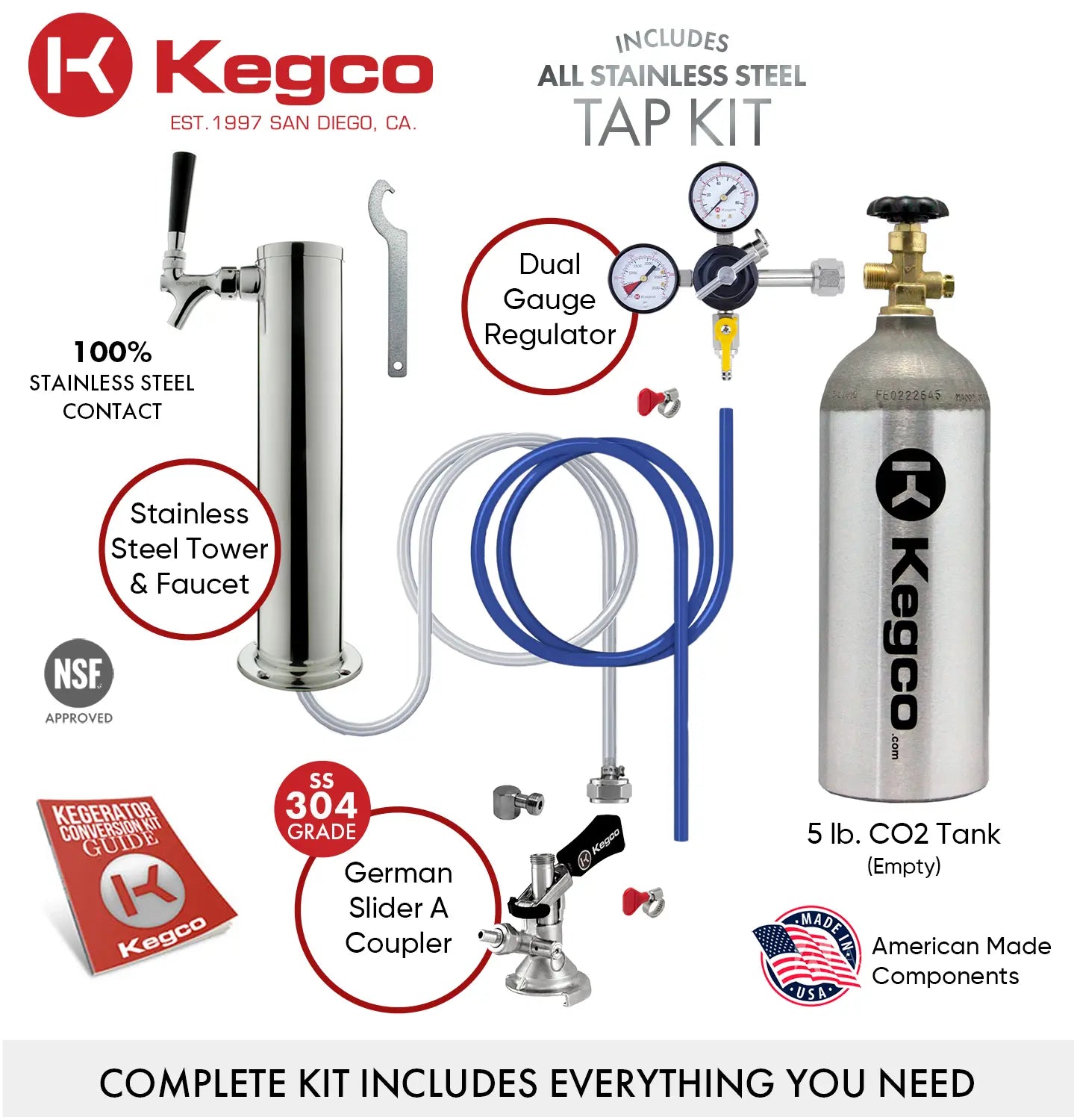

• MDK-309B-01 Keg Dispenser and Single-Faucet Draft Beer Dispense System
• Includes a brand new 5 lb. Aluminum CO₂ Tank
  This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada markings. The 320 valves are CGA approved, and have a male thread for CO2 regulators. An average fill is good for 5-6 kegs depending upon your fill.
• Includes Commercial Grade Dual Gauge CO₂ Regulator
  The regulator works with any CO₂ tank with a CGA-320 valve and measures PSI, as well as the volume of the CO₂ gas in the cylinder. It has a pressure release valve and a large hand control which makes it easy to adjust the pressure inside the keg.
• Includes 5 feet of 5/16 Inch I.D. Blue Air Line Assembly with 2 Snap Clamps
  This standard length 5 foot 5/16" I.D. blue air/CO₂ tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. The air line assembly comes with two plastic snap clamps with a reusable clamp design.
• Includes A system lever handle keg coupler that can tap all domestic kegs
  This commercial grade lever handle keg coupler works with all German A system Sankey kegs. It features a 55-psi pressure relief valve and a nickel-plated forged brass body. To tap a keg, simply pull out and then down on the lever handle.
• Includes a Kegco Exclusive 14" Tall, 3" Diameter Polished Stainless Steel Draft Tower
  This NSF-approved tower is a 3" diameter single faucet metal draft tower made of polished stainless steel and includes 5 feet of 3/16" I.D. clear beer tubing. The faucet, shank, and fittings are all made of 304 grade stainless steel for the ultimate in sanitation. The tower is mounted using the gasket and four screws that are included. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers to allow you to easily fill tall growlers and pint glasses.

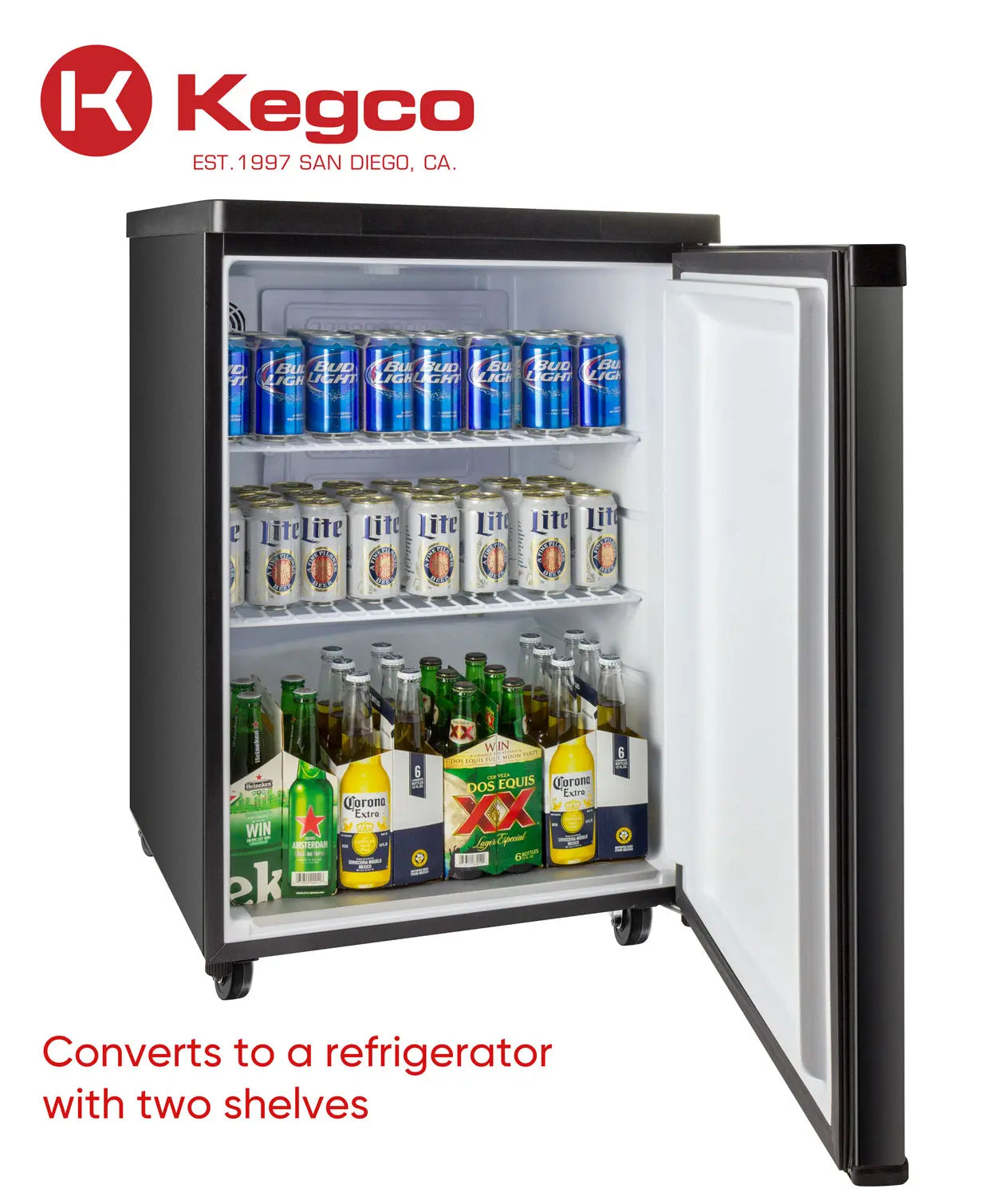

• Converts to refrigerator 2 full-width wire shelves
• Large enough to hold all full size kegs (Including Coors, Miller and many additional brands)
• Holds: 1/2 barrels / Full Size Kegs (15.5gal), 1/4 barrels / Ponies (7.75gal) and 1/6 barrels (5gal)
• Matte black cabinet and door
• Digital temperature control keeps temperature in range of 32°F-75°F
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• A perfect option for dispensing beer, soda, kombucha or wine
• Deep Chill function to quickly cool down warm keg
• Easy roll casters for mobility
• Removable built-in drip tray with grill to collect spills
• Chrome guard rail to protect your mugs and glasses from sliding off
• Stainless steel interior floor mat for long lasting durability and easy glide of beer keg
• 25% more energy efficient design saves you money each month!
• Plugs into standard home outlet
• UL Listed

Warranty Information:

• 1 Year Parts and Labor
• 5 Years on Compressor (parts only)

SPECS

Dimensions
Height	33.25"
Width	24"
Depth	25"

Weight
Unit Weight	96.8 lb.s
Shipping Weight	110

Warranty
Labor	1 Year
Parts	1 Year
Compressor (Parts Only)	5 Year

Exterior
Cabinet	Black
Drip Tray	Yes
Guard Rail	Yes
Casters	Yes

Keg Storage Capacities
Full Size / 1/2-Barrel	Holds 1
Pony Size / 1/4-Barrel	Holds 1
1/4-Barrel Slim	Holds 1
1/6-Barrel	Holds 2
5 gal. Ball/Pin Lock Keg	Holds 3
5-Liter / Mini Keg	Holds 3

Key Features
Built-in Capable	No
Keg Coupler	D System
Security Lock	No
Regulator	Dual Gauge
CO2 Tank	5 lb.
Cleaning Kit	Optional Add-On
Outdoor Use	No
Commercial Use	No

Door
Color / Material	Matte Black
Number of Doors	1
Door Handle	Recessed
Field Reversible	Yes
Accepts Custom Overlay Panel	No

Draft Beer Tower
Number of Faucets	1
Material	Stainless Steel
Height	14.25"
Diameter	3"

Cooling System
Type	Compressor
Defrost System	Manual
Front Ventilation	No

Controls
Adjustable Thermostat	Yes
Digital	Yes

Electrical
Electrical Requirements	115v/60hz
Running Amps	1.7 A

WARRANTY

Labor - 12 Months

LIMITED ONE YEAR WARRANTY

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished.

Parts - 60 Months

LIMITED SECOND THROUGH FIFTH YEAR WARRANTY:

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges.

Additional Details

WHAT IS NOT COVERED:

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
