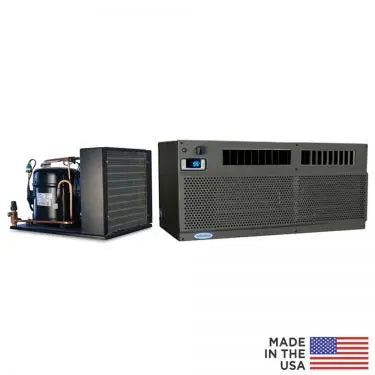

CellarPro Split Horizontal Cooling Unit 1/4 Ton
urbanmancaves.com
DESCRIPTION
CellarPro's Mini-Split 3000Sh-EC cooling units (1/4 Ton Nominal) are engineered for wine cellars up to 600* cubic feet in both commercial and residential wine cellars.
Performance testing shows that this unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110F more effectively than similar units from competing brands. 3000Sh-EC units use energy-efficient EC fans in the evaporator and are significantly quieter than comparable units from other brands.
*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar. Cold-side ducting, glass and/or uninsulated walls, extreme humidity, altitude and other factors may affect the sizing calculation.
These cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).
Please note: These units were not designed for, and the warranty does not cover damage from, marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect outdoor components against corrosion that is common in coastal regions.
- This unit is designed to separate the heat and noise from the condensing unit from interior living spaces
- Can be configured to operate indoors or outdoors in extreme temperature conditions ranging from -20 to 110F
- Extra-large coils generate maximum cooling power inside the cellar
- Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs
- Temperature set point range is 47F to 62F when the cooling unit is properly sized
FEATURES
- Now with energy-efficient EC Fans on the cold side, save $83.67 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
- This unit is designed to separate the heat and noise from the condensing unit from interior living spaces, and can be configured to operate indoors or outdoors in extreme temperature conditions ranging from -20 to 110F.
- The Evaporators are built with high-output centrifugal fans which include variable speed settings for your choice of maximum cooling power at the high fan speed, or quieter operation (53.7 decibels) at the low fan speed.
- Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
- Extra-large coils generate maximum cooling power inside the cellar.
- Excess condensate is managed through a 1/2" drain line that exits from a choice of knockouts in the evaporator.
- Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.

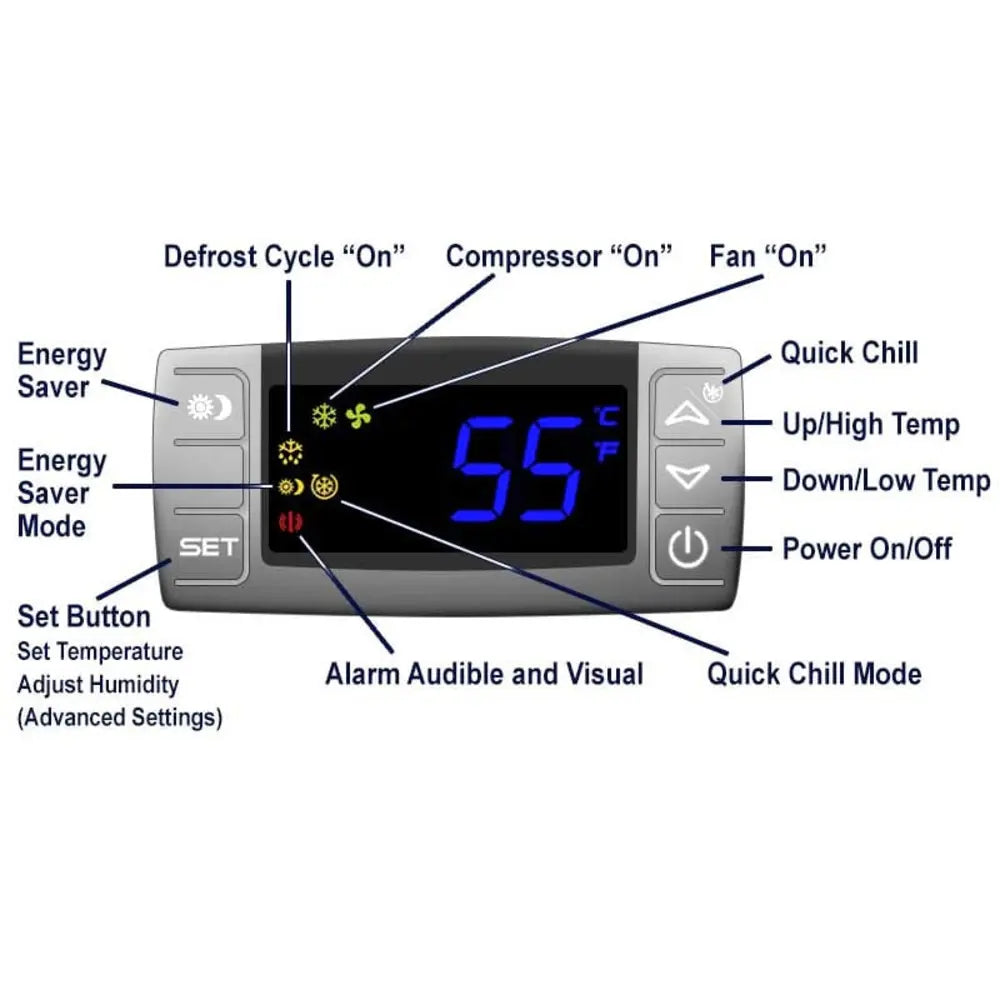

- Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
- Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
- Temperature set point range is 47F to 62F when the cooling unit is properly sized.
- Unit operates with minimal vibrations and less noise than comparable units from competitors.
- Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
- Common dedicated 15-amp circuit is required to power the unit.

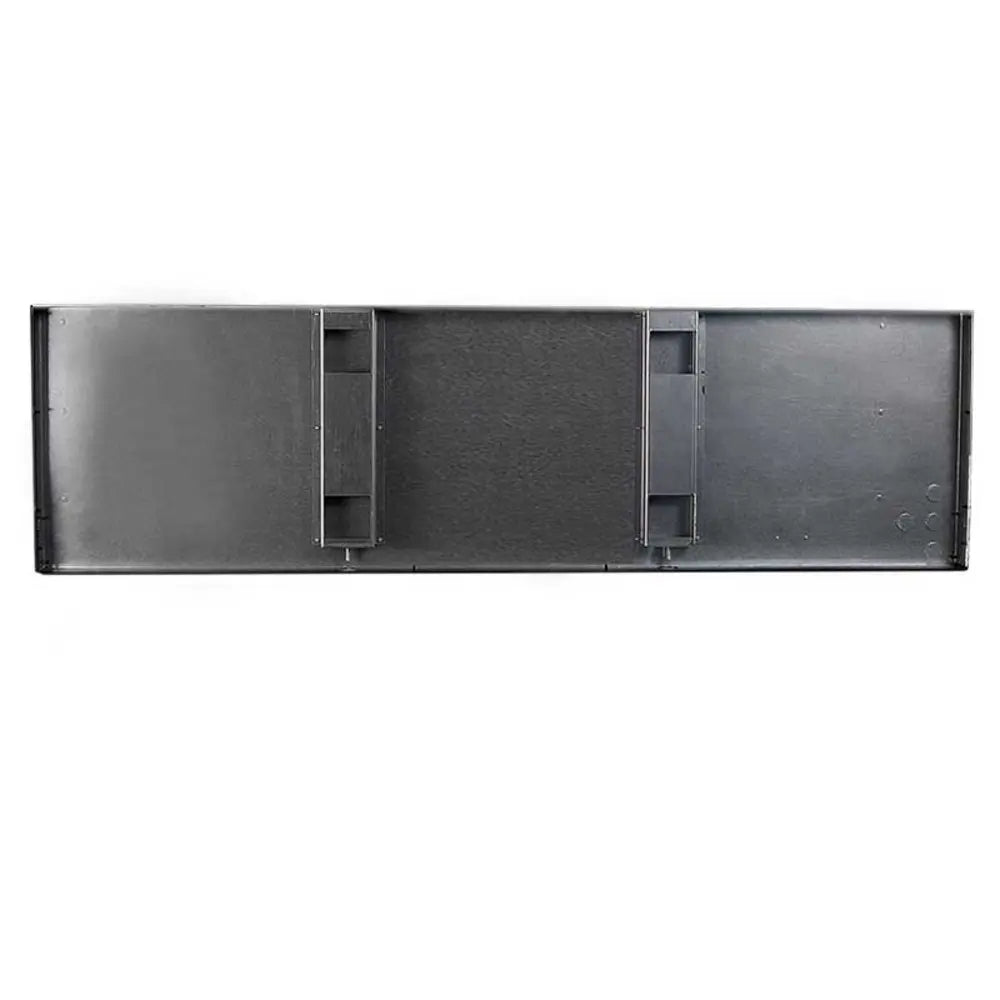

- Adjustable mounting brackets are included as standard equipment, and multiple knockouts and access points ensure easy installation.
- Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
- Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
- Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
- Oversized Receiver allows for long line sets up to 100 equivalent feet and up to 30 vertical feet.
- Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
- Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
- CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
- An optional Extended Warranty (P/N 7528) is available for additional protection.
- ETL Tested and Certified to rigorous UL Standards for safety.
SPECS
| Dimensions | |
|---|---|
| Height | 13.2" |
| Width | 30.4" |
| Depth | 14.4" |
| Outside Louver | Yes |
| Capacity | |
|---|---|
| Rated Capacity | Up to 600 Cu. Ft. |
| Weight | |
|---|---|
| Weight | 105 lbs |
| Warranty | |
|---|---|
| Labor | 2 Years |
| Parts | 5 Years |
| Key Features | |
|---|---|
| High Temperature Alarm | Yes |
| Electronic Controls | Yes |
| Digital Temperature Display | Yes |
| Defrost System | Auto-Defrost Cycle |
| Refrigerant | R134A |
| Certification | ETL Tested |
| Condenser (Split Systems) | |
|---|---|
| Height | 13.2" |
| Width | 30.4" |
| Depth | 14.4" |
| Weight | 63 lbs. |
| Electrical | |
|---|---|
| Electrical Requirements | 115V AC / 60Hz |
