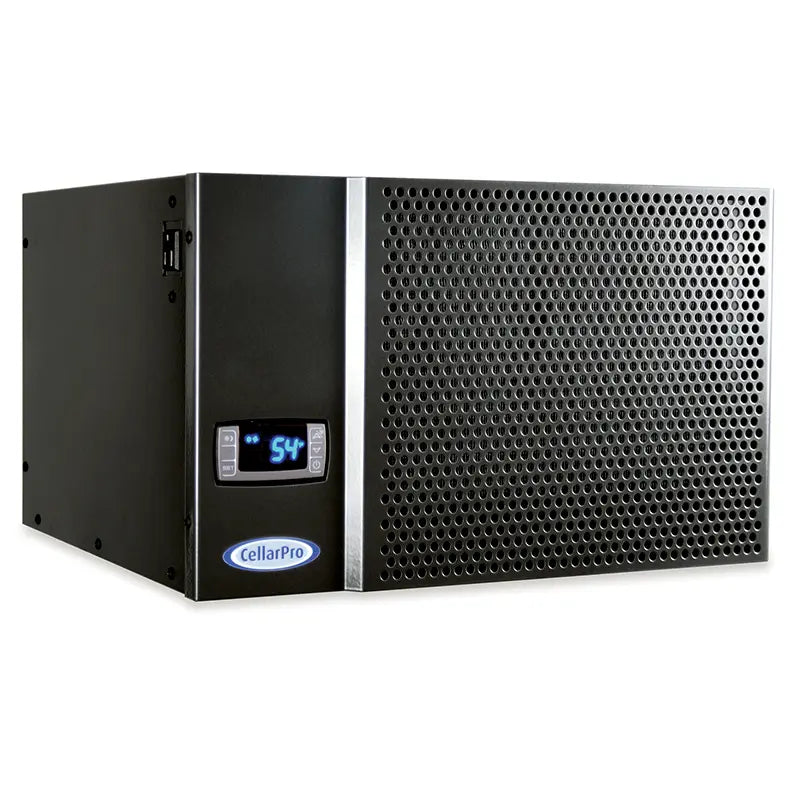

CellarPro Wine Cellar Cooling Unit (400 Cu.Ft. Capacity)
urbanmancaves.com
DESCRIPTION
CellarPro's 1800XTS Wine Cooling Unit provides outstanding performance, adjustable humidity control and maximum cooling power. Designed for small wine cellars up to 400 cubic feet, CellarPro Cooling Units are designed to be installed through the wall and should not be ducted unless accompanied by an In-Line Fan (Owners Manual). This CellarPro 1800 XTS has a 400 Cubic Foor Capacity within properly insulated and sealed wine cellard. CellarPro 1800XTS Wine Cooling Units can be used immediately to replace Breezaire 2200 and Wine-Mate 2500 Cooling Units.
Please Note:For installations in environments down to 20°F, we recommend adding our compressor heater modification to the cooling unit. Below 20°F, the cooling unit's performance will begin to degrade.
OPTIONS AND MODIFICATIONS
-
Cord Out Side
The 8-foot, 16-gauge Grounded Power Cord can be routed to exit from the left side of the Cooling Unit, just below the Power Outlet. This modification is designed for cooling unit installations where the power outlet is located inside the cellar.
-
Condensate Fitting & Tube
A Condensate Fitting is recommended when the Cooling Unit will be installed in a Wine Cellar. The fitting allows excess condensation to drain from the Cooling Unit through the Vinyl Tube. The included tubing measures 8' long with a 1/2" I.D. The drainage can exit outside the wine cellar with the rear configuration or inside the wine cellar with the bottom configuration.
-
Vent Exhaust Configuration
CellarPro offers the choice of Top or Rear Vent Exhaust configuration for your Wine Cooling Unit. The Vent Panel can also be swapped in the field for interchangeable Top/Rear Vent Exhaust.
-
Duct Kit (Rear) with Inline Fan Duct Kit
Allows CellarPro 1800 Series Cooling Units to be ducted up to 100 equivalent feet. The Kit includes: a 6-inch inline fan, 50 ft. of 6-inch insulated ducting, Galvanized Metal Duct Hood slides over the rear of the Cooling Unit and baffles the air intake and exhaust, 8-foot power line procides switched power for the inline fan to match the on/off cycle of the wine cooling unit.
-
White Louvered Grill
If you are using your Cooling Unit as a through-the-wall system, this Louvered Grill can be installed outside the Cellar to cover the rear of the Unit. The Grill can be painted to blend with surrounding d1/2©cor. Measures 20" by 12".
-
Louvered Wood Grill
Fits over the Front of all CellarPro 1800 Cooling Units, and can be configured to match the wine racks in your wine cellar. The Louvered Wood Grill is available in a choice of woods and finishes to with with other wine rack components in your wine cellar. (Please allow 4-6 weeks lead time.)
-
Air Filter and Frame
Imagine--no more coils to clean! When the Filter becomes dirty, simply pull out the Frame, replace the dirty filter with a clean one, and return the Frame to the Cooling Unit. The Fiber Orientation and Graduated Density of this Filter are designed to capture more dust and particles than other synthetic filters.
If you are replacing a cooling unit in a wine cabinet other than a Le Cache, you may also need the following optional accessories:
- Mounting Clips (Pair)
- Provides outstanding performance, adjustable humidity control, and maximum cooling power
- Removable steel case allows the cooling unit to be easily repaired in the field
- Features maintenance-needed indicator, audible and visual alarms, and energy-saver mode
- Designed to be installed through-the-wall in small wine cellars (up to 400 cubic feet)
- Please Note: Should not be ducted unless accompanied by an In-Line Fan
FEATURES
- Powder-Coated Dark Grey Finish
- Max Cooling Power
- Electronic Thermostat
- Digital LED Display
- Adjustable Humidity Control
- Energy-Saver Mode
- Quick-Chill Mode
- Audible and Visual Alarms
- High-Output Compressor
- Electrofin Coated Coils
- Min/Max Temperature
- Maintenance-Needed Indicator
- Auto-Defrost Cycle
- Ultra-Quiet Operation (< 50 dBA)
- Power On/Off Switch
- Removable Steel Case
- Power Cord Exits from the Rear
- Vibration-free Operation
- 3-Amp light Receptacle
- Warranty: 5-Year Limited Warranty - Parts and Labor
Please Note:For installations in environments down to 20°F, we recommend adding our compressor heater modification to the cooling unit. Below 20°F, the cooling unit's performance will begin to degrade.
SPECS

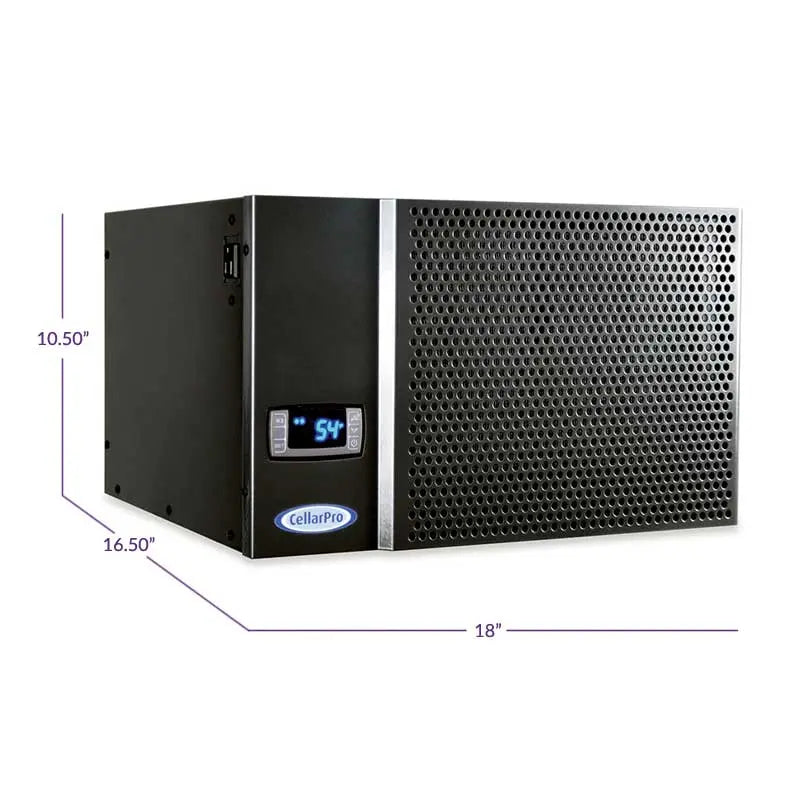

| Dimensions | |
|---|---|
| Height | 10 1/2" |
| Width | 18" |
| Depth | 16 1/2" |
| Capacity | |
|---|---|
| Rated Capacity | 1800 BTU/hr |
| Enclosure Volume | 400 Cu. Ft. |
| Weight | |
|---|---|
| Weight | 60 lbs. |
| Warranty | |
|---|---|
| Labor | 5 Years |
| Parts | 5 Years |
| Key Features | |
|---|---|
| High Temperature Alarm | Yes |
| Electronic Controls | Yes |
| Digital Temperature Display | 3-Digit LED Display |
| Humidity Control | Adjustable |
| Defrost System | Auto-Defrost Cycle |
| Exhaust Direction | Top or Back |
| Certification | ETL (UL Standards) |
| Electrical | |
|---|---|
| Electrical Requirements | 115 V AC |
