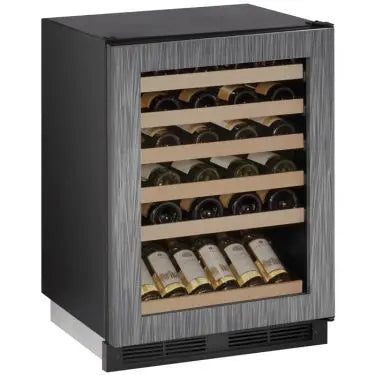

U-Line 48 Bottle Single Zone Built-In Wine Refrigerator with Panel Ready Overlay Integrated Frame Glass Door
urbanmancaves.com
DESCRIPTION
U-Line gives wine appreciation an entirely new frame of reference with a distinctive look for the 2000 Series Wine Captain models. The Full Overlay Frame Edition provides an opportunity to personalize Wine Captain models with the style and grace of custom cabinetry.
The U Line UHWC124-IG01A features a LowE Coated, Argon Gas Filled Thermopane Glass Door that accepts a custom 3/4" door panel (not included) for seamless undercounter integration. It stores up to 48 bottles on Slide-Out Wine Racks that fully extend for easy accessibility. The contoured Beech-Trimmed Wine Racks can be stained to match surrounding decor. Conveniently located on the upper face of the unit is U-Line's exclusive Touch Control Digital Technology that allows you to accurately set and see the temperature. An Adjustable On/Off Interior Light automatically turns off when the door is closed, or can be set to stay on for 3 hours.
PLEASE NOTE: A full overlay frame must be installed. The unit ships with the door off.
TOUCH CONTROL DIGITAL TECHNOLOGY
ULine's exclusive Touch Control Digital Technology is a Full-Featured, Easy-View Command Center integrated into the Fixed Lower Wine Rack Display. The system allows you to accurately set and see the temperature in this unique Single Zone Convection Cooling System that allows for storage of wine varietals in one single temperature zone for optimum preservation. Temperature displays in both Fahrenheit and Celsius. The Touch Control Digital Technology also manages key model functions and provides user alerts.
- The U-Line UHWC124-IG01A 48-Bottle Built-In Wine Refrigerator gives wine appreciation an entirely new frame of reference with a distinctive look for the 2000 Series Wine Captain models
- This wine cooler comes equipped with a black cabinet, an integrated panel ready framed glass door (requires custom panel), and interior LED lighting
- Wine reserve includes a digital touch pad control, a digital passive cooling system, and a rubber mounted compressor that virtually eliminates vibration

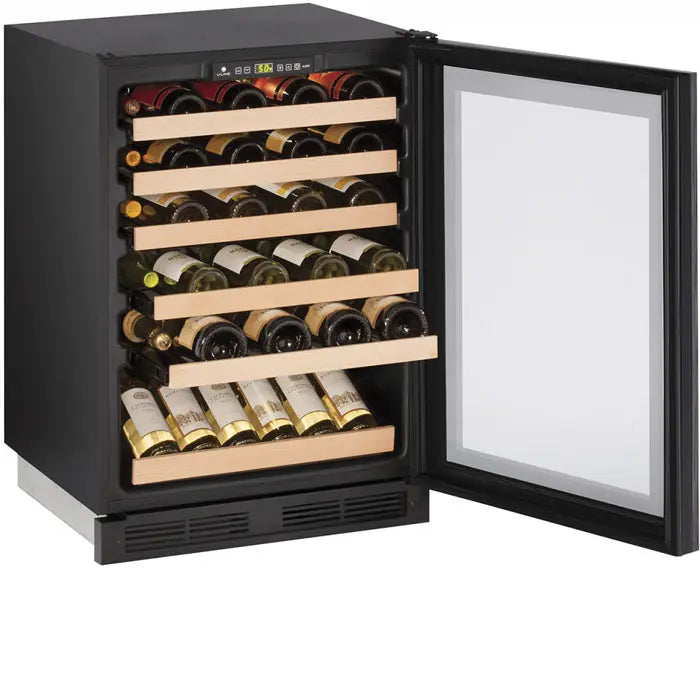

- U-Line's wine refrigerator comes equipped with 6 three-quarter extension black vinyl coated wine racks with natural beech wood fronts that are capable of storing and cooling up to 48 bottles of wine at one time
- Unit is designed to be built-in or can be freestanding with additional accessory kit
FEATURES
- Volume of 5.2 cu ft holds up to 48 wine bottles (750 ml)
- Digital Touch Pad Control is conveniently located on upper face of unit
- Temperature range: 38°F - 65°F
- Digital passive cooling system
- Maintains temperature to within 1°F of the set point to maximize preservation
- Relative humidity inside the unit is approx. 50%
- Rubber mounted compressor virtually eliminates vibration
- Black interior is illuminated with LED lighting that automatically turns off when the door is closed, or can be set to stay on for 3 hours
- Three-quarter extension black vinyl coated wine racks allow for easy access and prevent bottles from shifting
- Wine racks accommodate a variety of bottle shapes and sizes, while the fourth and fifth racks allow for larger diameter wine and champagne bottles
- LowE coated, argon gas filled thermopane glass door provides protection from harmful UV light
- Standard commercial stainless steel handle is interchangeable with professional handle accessory
- Door swing is field reversible
- Unit is designed to be built-in or can be freestanding with additional accessory kit
- Solid natural beech wood fronts on wine racks can easily be stained to match surrounding cabinetry
- Integrated model requires 3/4" custom door panel
- Four independently adjustable leveling legs provide a precise undercounter fit
- Available in the following finishes: Stainless, Integrated, or Black
- UL Listed
INSTALLATION REQUIREMENTS
- MUST add 1/4" to overall width for proper installation
- Allow 2-1/2" clearance on hinge side for a 90° opening when installed against a wall
- Front grille/toe kick must be unobstructed for proper ventilation
DOOR CLEARANCE INFORMATION
*Zero clearance on all 2000 Series black or white units when installed with custom full overlay door panel/frame.
*Zero clearance on all 2000 Series and 1000 Series black or white units when installed with a 1/4" flush insert panel. Allow proper clearance for a raised insert panel.
*Allow 2-1/2" clearance, on hinge side, for a 90 degree opening when installed against a wall on all Stainless Steel models.
SPECS
| Dimensions | |
|---|---|
| Height | 34-1/8" |
| Width | 24" |
| Depth | 23-1/4" |
| Weight | |
|---|---|
| Unit Weight | 123 lbs. |
| Shipping Weight | 130 lbs. |
| Warranty | |
|---|---|
| Labor | 1 Year |
| Parts | 1 Year |
| Compressor (Parts Only) | 5 Years |
| Key Features | |
|---|---|
| Built-in Capable | Yes |
| Security Lock | No |
| Multiple / Dual Zone | No |
| Beverage Center | No |
| Cabinet Color / Material | Black |
| Capacity | |
|---|---|
| Cubic Feet | 5.3 Cu. Ft. |
| Wine Bottle Count | 48 |
| Controls | |
|---|---|
| Adjustable Thermostat | Yes |
| Digital | Yes |
| Cooling System | |
|---|---|
| Type | Compressor |
| Defrost System | Yes, Automatic |
| Front Ventilation | Yes |
| Shelving | |
|---|---|
| Type | Slide-Out Wire Racks |
| Number of Shelves | 5 |
| Material | Vinyl-Coated Metal, Beech Trim |
| Removable | Yes |
| Adjustable | No |
| Glide-Out (Roller Assemblies) | Yes |
| Interior | |
|---|---|
| Color | Black |
| Compartments (Distinct Zones) | No |
| Lighting | Yes |
| Door | |
|---|---|
| Type | Thermopane Glass Door |
| Number of Doors | 1 |
| Color / Material | Integrated |
| Field Reversible | Yes |
| Accepts Custom Panel | Yes |
| Tinted / UV Protective | Yes |
| Self-Closing | Yes |
| Electrical | |
|---|---|
| Electrical Requirements | 110/115 V, 60 Hz |
| Running Amps | 1.2 |
