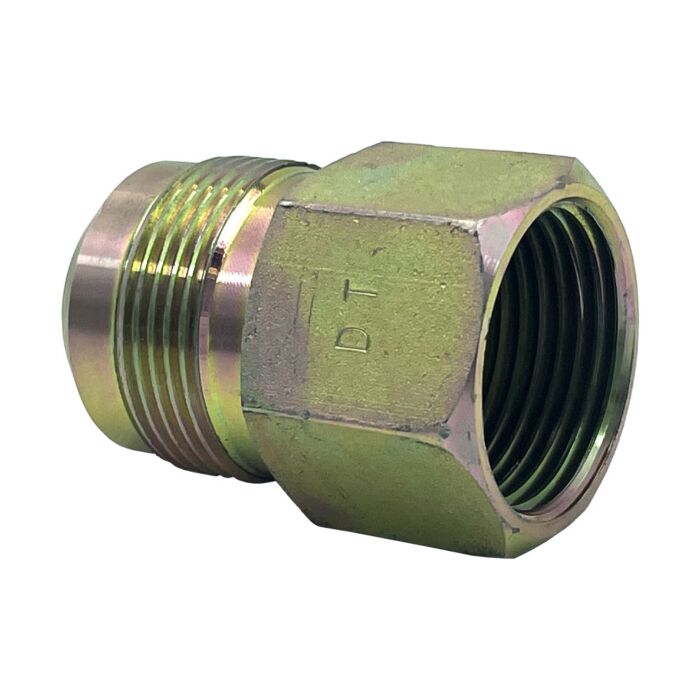

1" Flare x 3/4" FIP

Eliminate multi-part adapter stacks by routing 1-inch flare tubing directly into a 3/4-inch female iron pipe (FIP) fitting using this single-piece transition connector. Constructed from a solid steel body, this straight reducer maintains continuous internal flow while transferring system pressure from an expanded flare tube to a standard threaded receiver.

The 1-inch flare end establishes a concentric metal-to-metal seal when mated with accompanying hardware, resisting pull-out forces and vibration common in active machinery. The opposing 3/4-inch FIP interface accepts male-threaded valves, gauges, or rigid pipe runs, providing a secure mechanical lock in threaded assemblies. This specific dimensional transition is routinely specified for HVAC service ports, refrigerant line-sets, and industrial pneumatic manifolds where spacing restrictions prevent intermediate couplings.

• Interface Configuration: Transitions from 1-inch flare tubing diameter to 3/4-inch female iron pipe threading
• Material Composition: Machined steel housing engineered for uniform wall consistency and thread form accuracy
• Sealing Mechanism: Tapered flare seat compresses against mating surfaces to create leak-resistant joint geometry
• System Application: Bridges flexible tubing networks with threaded infrastructure in mechanical and gas distribution layouts

Install this fitting when a direct diameter reduction and thread conversion are required within a confined panel or chassis. Align the flare mouth carefully to avoid angular strain during tightening, as misalignment can alter the sealing face contact pattern and compromise long-term retention. Verify that your tubing wall thickness accommodates the flare forming process and matches the specified bore to preserve expected flow rates across the transition point.
