30" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Whole House Propane

30" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS (Whole House Propane)

A warm, cozy fire pit can be an ideal outdoor retreat for family and friends, especially during those cold winter months. Our 30" x 6" linear channel drop-in burner pan with electronic ignition kit (whole house propane) is just what your customers will need to organize such an event. With just the flip of a switch, your customers and their guests will be enjoying a brilliant flame and lots of memorable conversations!

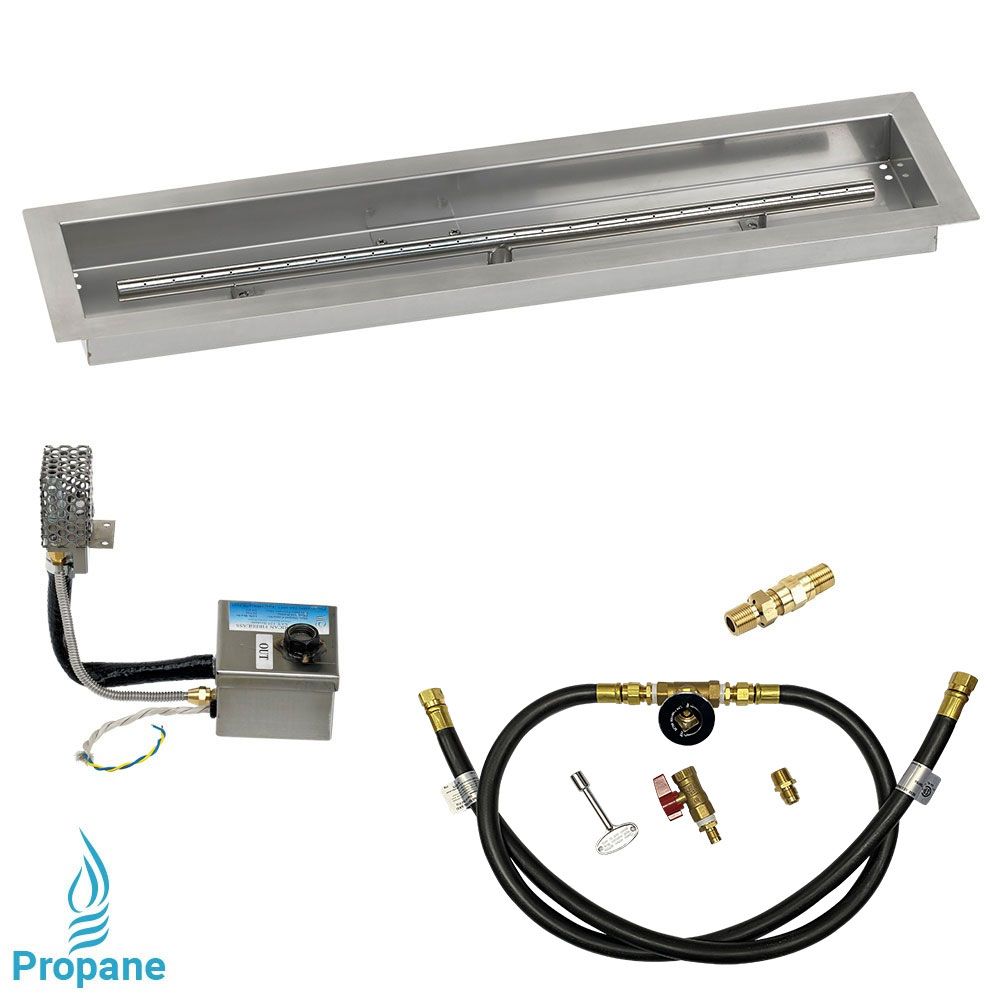

Our 30" x 6" linear drop-in pan with electronic ignition kit (whole-house propane) comes fully equipped with all the following components:

30" x 6" Linear Channel Drop-in Burner Pan w/ Built-in T-Burner - Our 30" x 6" linear drop-in burner pan comes with a convenient 'lip' so it can be installed into your DIY fire pit and easily removed after use. These burner pans greatly reduce the amount of fire glass your customers will need to fill their fire pit by creating a false bottom which gives the illusion that the fire pit is full, whereas only the top part of it is. All our linear drop-in burner pans are made of 304 stainless steel, which means they are very durable and can withstand extreme heat as well as harsh weather without sustaining any damage or rust. Each comes with a built-in T-burner, 1/2 inch gas inlet and drilled weep holes to prevent water accumulation.

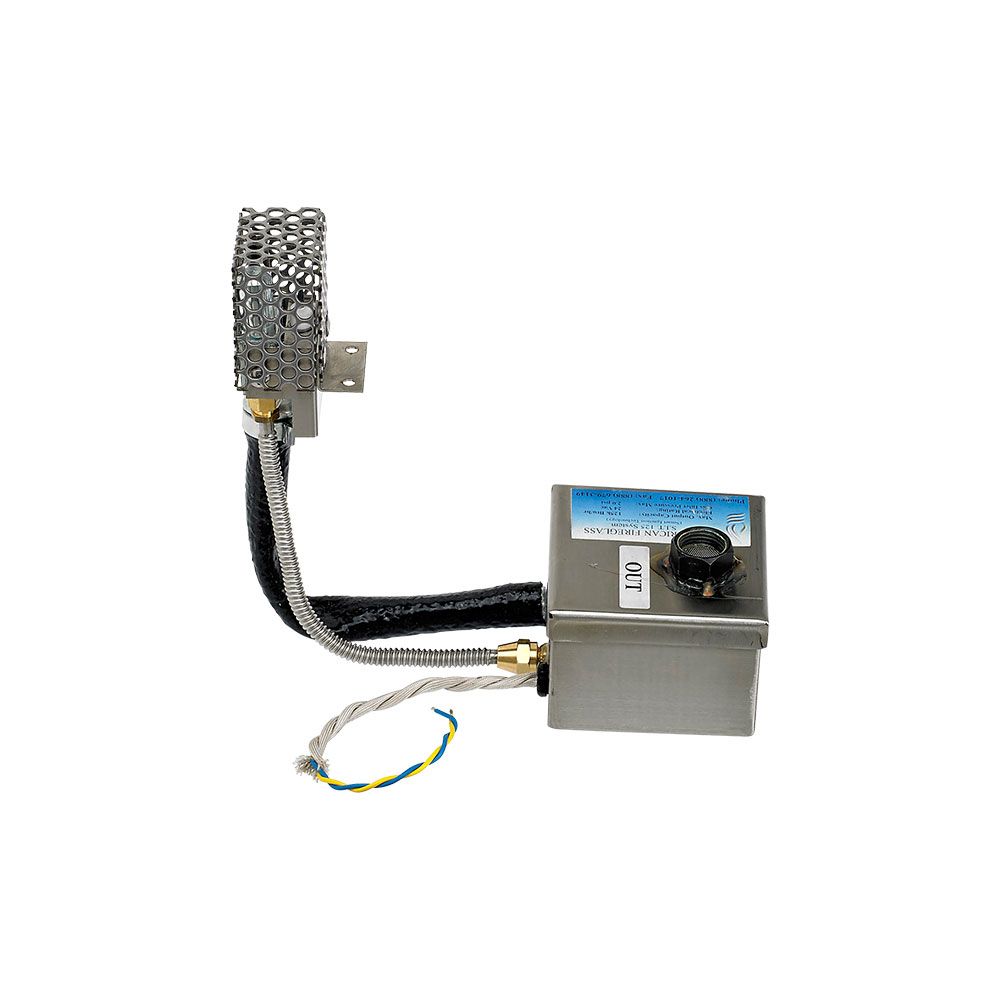

AWEIS (Whole House Propane) - Our AWEIS (All Weather Electronic Ignition System) is the smallest electronic ignition system available in today's market. Its size makes it ideal for use in fire features with very little vertical space. Developed exclusively to work with fire bowls or fire pit burners, the AWEIS consists of a Hot Surface Ignition control that electronically opens and closes the gas valve. It also features a thermopile with automatic flame sensor for additional safety. This AWEIS has a maximum gas output of 290 BTU/hr, which means it works well with most fire features.

24V Transformer

Safety Shut-Off Valve

Key Valve

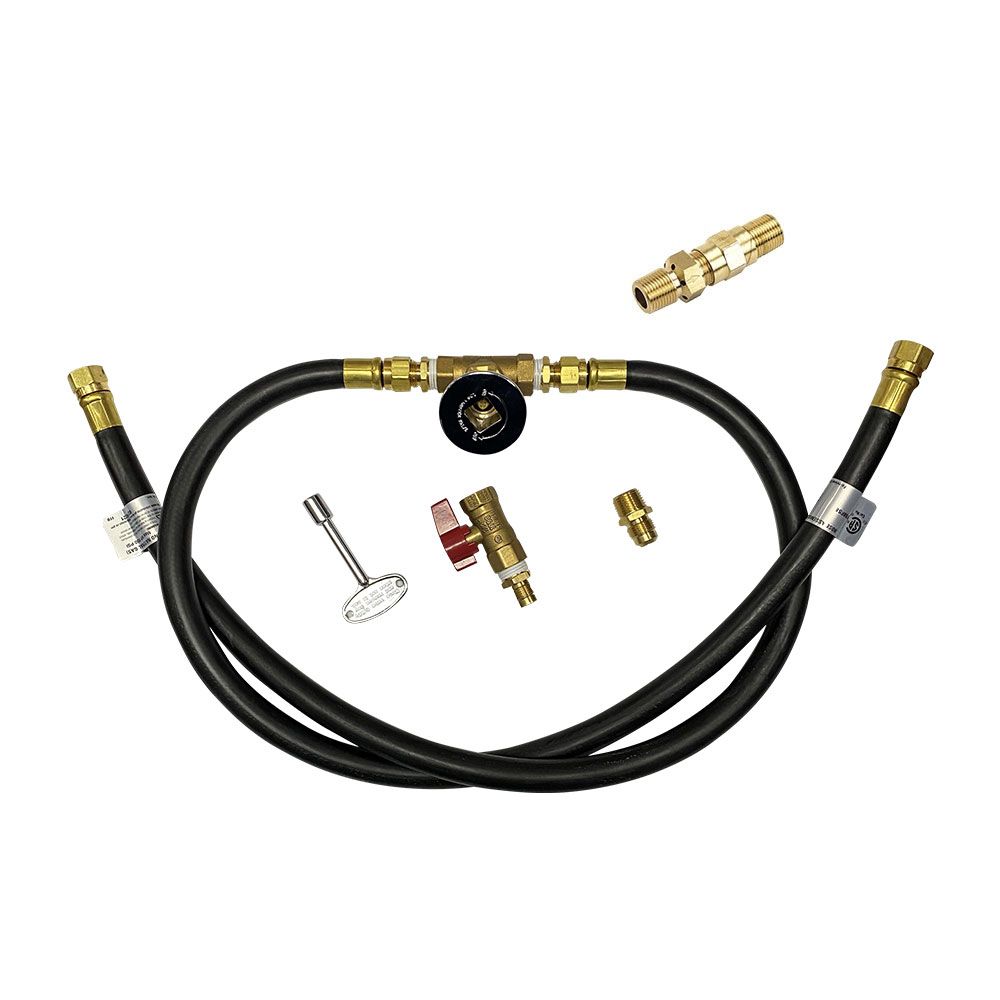

Two Gas Flex Lines

Propane Air Mixer

 **************************************************************************************
Caution: Installing this electronic ignition kit can be dangerous. We do NOT recommend that you attempt to install this product yourself unless you are a certified NFI professional. To find a certified NFI professional in your area, click here.
**************************************************************************************

30" x 6" Linear Channel Drop-In Pan with AWEIS (Whole House Propane) Specifications

• Product Weight: 22.00 lbs
• Material: 100% 304 Stainless Steel (hand crafted)
• Color: Stainless Steel
• Dimensions: 30" L x 6" W x 2" D x 1 1/4" Flange
• Fire glass capacity: 20 lbs of fire glass required (not included)
• Special Feature: Drilled holes (not punched) in order to prevent whistling
• Includes: 1/2 bottom gas inlet for easy installation
• Burner Heat rating: 60,000 B.T.U/Hour rating maximum
• For use in: To be used in outdoor, vented, whole house propane gas fire features ONLY
• Installation: Certified NFI Professional Recommended
• Flame / Heat Sense: Thermopile
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• AWEIS Max. Btu Output: 290K Btu/hr
• Inlet / Outlet Size: 1/2" FPT
• Operating Voltage: 24 volts ac
• Inlet Gas Press: Limit: 2.0 PSI
• Valve Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
• Warranty:Pan & Burner - 5 year limited warranty, Kit - 1 year limited warranty
• User Manual Click Here To Download
• Cutout Size & Recommended Fire Ring: Download Now

This Product Qualifies For a Lifetime Warranty
